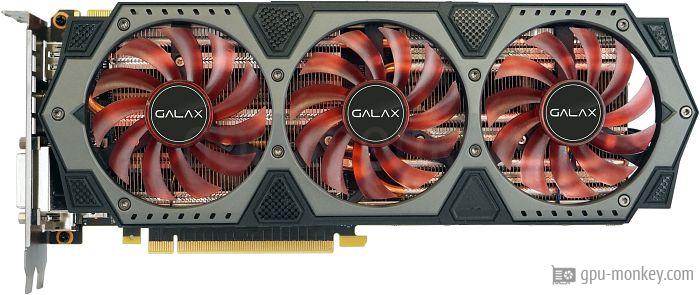

The GALAX GeForce GTX 980 SOC has 2048 shaders and 16 execution units. The graphics card thus achieves a theoretical FP32 computing power of 5.44 TFLOPS.
The GALAX GeForce GTX 980 SOC can use 4 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 224 GB/s on a 256 bit wide memory interface.
The base clock frequency of the GALAX GeForce GTX 980 SOC is 1.228 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
The TDP (Thermal Design Power) of the GALAX GeForce GTX 980 SOC is 165 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.
The GALAX GeForce GTX 980 SOC has a total of 3 Axial fans to cool the graphics processor and graphics memory.
Up to 4 screens can be connected to the GALAX GeForce GTX 980 SOC.
The GALAX GeForce GTX 980 SOC has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard.
The video codecs accelerated in hardware by the GALAX GeForce GTX 980 SOC reduce the processor load and ensure lower energy consumption.
The GALAX GeForce GTX 980 SOC is 281 mm long and 124 mm high. With a width of 41 mm, the graphics card requires 2 PCIe-Slots in the case.
The GALAX GeForce GTX 980 SOC made in 28 nm was published in Q3/2014 for 549 $.
GALAX GeForce GTX 980 SOCType a model name – the comparison opens automatically.
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
Average of 2 public MonkeyBench results (WebGPU) for the NVIDIA GeForce GTX 980.
More benchmarks for the graphics card GALAX GeForce GTX 980 SOC
