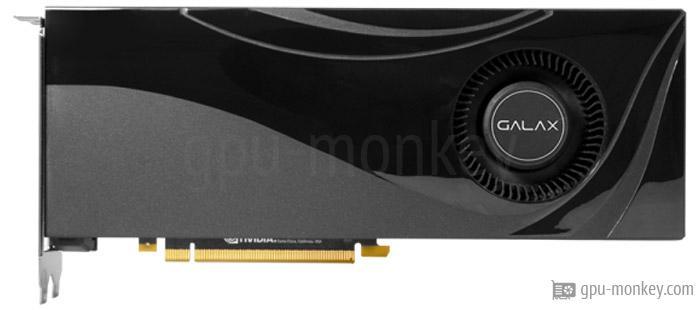

GALAX GeForce RTX 2060


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the GALAX GeForce RTX 2060. The graphics card is based on the NVIDIA GeForce RTX 2060 (Turing) and has 6 GB GDDR6 graphics memory with a memory bandwidth of 336 GB/s. The GALAX GeForce RTX 2060 has 30 execution units with 1920 shaders.

GPU

The GALAX GeForce RTX 2060 has 1920 shaders and 30 execution units. The graphics card thus achieves a theoretical FP32 computing power of 6.45 TFLOPS.

Based on: NVIDIA GeForce RTX 2060
GPU Chip: TU106 (Turing)
Streaming Multiprocessors: 30
Shader: 1920
Render Output Units: 48
Texture Units: 120
Raytracing Cores: 30

Memory

The GALAX GeForce RTX 2060 can use 6 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 336 GB/s on a 192 bit wide memory interface.

Memory Size: 6 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 336 GB/s
Memory Interface: 192 bit

Clock Speeds

The base clock frequency of the GALAX GeForce RTX 2060 is 1.365 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.365 GHz
Boost Clock: 1.680 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the GALAX GeForce RTX 2060 is 160 W. The graphics card is supplied with energy via the 1 x 8-Pin connector.

TDP: 160 W
TDP (up): --
Tjunction max: 88 °C
PCIe-Power: 1 x 8-Pin

Cooler & Fans

The GALAX GeForce RTX 2060 has a total of 2 Radial fans to cool the graphics processor and graphics memory.

Fan-Type: Radial
Fan 1: 2 x 65 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the GALAX GeForce RTX 2060.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: 1x DP v1.4a
DVI Ports: 1
VGA Ports: --
USB-C Ports: --

Featureset

The GALAX GeForce RTX 2060 has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the GALAX GeForce RTX 2060 reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: No

Dimensions

The GALAX GeForce RTX 2060 is 281 mm long and 124 mm high. With a width of 41 mm, the graphics card requires 2 PCIe-Slots in the case.

Length: 281 mm
Height: 124 mm
Width: 41 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The GALAX GeForce RTX 2060 made in 12 nm was published in Q1/2019 for 349 $ (Reference).

GPU Interface: PCIe 3.0 x 16
Release date: Q1/2019
Launch Price: 349 $ (Reference)
Structure size: 12 nm
Part-no: 26NRL7MPX3BW
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
3433
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
3521

Port Royal (Raytracing)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
4179
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
4304

Speed Way Graphics Score (Raytracing)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
1453
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
1490

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
25 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
26 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
31 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
32 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
46 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
47 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
44 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
43 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
83 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
76 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
118 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
110 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
70254
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
66535

Geekbench 6 - Vulkan

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
67243
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
58499

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

GALAX GeForce RTX 2060 GALAX GeForce RTX 2060
6 GB GDDR6
6.45

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
