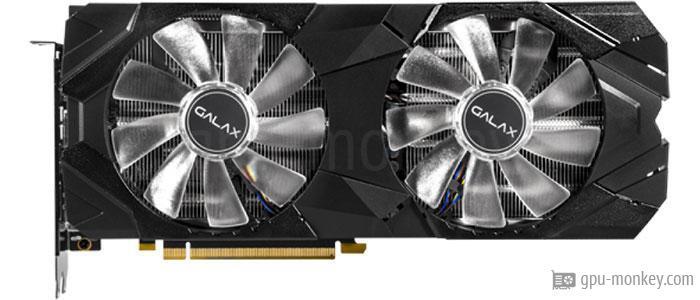

GALAX GeForce RTX 2080 EX (1-Click OC) (V2)


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the GALAX GeForce RTX 2080 EX (1-Click OC) (V2) are listed on this page. The graphics card is based on the TU104 (Turing) graphics chip, which is manufactured with a structure width of 12 nm. The GALAX GeForce RTX 2080 EX (1-Click OC) (V2) can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The GALAX GeForce RTX 2080 EX (1-Click OC) (V2) has 46 execution units with 2944 shaders. This gives the graphics card a theoretical FP32 computing power of 10.34 TFLOPS.

Based on: NVIDIA GeForce RTX 2080
GPU Chip: TU104 (Turing)
Streaming Multiprocessors: 46
Shader: 2944
Render Output Units: 64
Texture Units: 184
Raytracing Cores: 46

Memory

The GALAX GeForce RTX 2080 EX (1-Click OC) (V2) is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

The base frequency of this graphics card is 1.515 GHz and the manufacturer specifies the maximum turbo clock as 1.755 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.515 GHz
Boost Clock: 1.755 GHzDeviation vs GPU group+ 3 %
Avg (Game) Clock: 1.710 GHz
Overclocking: Yes

Thermal Design

The GALAX GeForce RTX 2080 EX (1-Click OC) (V2) is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 215 W.

TDP: 215 W
TDP (up): --
Tjunction max: 88 °C
PCIe-Power: 1 x 6-Pin, 1 x 8-Pin

Cooler & Fans

Graphics processor and graphics memory of the GALAX GeForce RTX 2080 EX (1-Click OC) (V2) are cooled by a Air cooling.

Fan-Type: Axial
Fan 1: 2 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): --
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the GALAX GeForce RTX 2080 EX (1-Click OC) (V2).

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the GALAX GeForce RTX 2080 EX (1-Click OC) (V2) it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

This area lists the video codecs that the GALAX GeForce RTX 2080 EX (1-Click OC) (V2) can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: No

Dimensions

The GALAX GeForce RTX 2080 EX (1-Click OC) (V2) needs the space of 3 PCIe-Slots in a case. It is 295 mm long, 143 mm high and 52 mm wide.

Length: 295 mm
Height: 143 mm
Width: 52 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The GALAX GeForce RTX 2080 EX (1-Click OC) (V2) was released in Q3/2018 at a price of 699 $ (Reference). The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes.

GPU Interface: PCIe 3.0 x 16
Release date: Q3/2018
Launch Price: 699 $ (Reference)
Structure size: 12 nm
Part-no: 28NSL6MDU9E2
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GALAX GeForce RTX 2080 EX (1-Click OC) (V2) GALAX GeForce RTX 2080 EX (1-Click OC) (V2)
8 GB GDDR6
39 fps (avg)
NVIDIA GeForce RTX 2080 NVIDIA GeForce RTX 2080
Average of gpu group
39 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 2080 EX (1-Click OC) (V2) GALAX GeForce RTX 2080 EX (1-Click OC) (V2)
8 GB GDDR6
47 fps (avg)
NVIDIA GeForce RTX 2080 NVIDIA GeForce RTX 2080
Average of gpu group
47 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 2080 EX (1-Click OC) (V2) GALAX GeForce RTX 2080 EX (1-Click OC) (V2)
8 GB GDDR6
68 fps (avg)
NVIDIA GeForce RTX 2080 NVIDIA GeForce RTX 2080
Average of gpu group
67 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GALAX GeForce RTX 2080 EX (1-Click OC) (V2) GALAX GeForce RTX 2080 EX (1-Click OC) (V2)
8 GB GDDR6
66 fps (avg)
NVIDIA GeForce RTX 2080 NVIDIA GeForce RTX 2080
Average of gpu group
63 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 2080 EX (1-Click OC) (V2) GALAX GeForce RTX 2080 EX (1-Click OC) (V2)
8 GB GDDR6
119 fps (avg)
NVIDIA GeForce RTX 2080 NVIDIA GeForce RTX 2080
Average of gpu group
114 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 2080 EX (1-Click OC) (V2) GALAX GeForce RTX 2080 EX (1-Click OC) (V2)
8 GB GDDR6
166 fps (avg)
NVIDIA GeForce RTX 2080 NVIDIA GeForce RTX 2080
Average of gpu group
158 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
