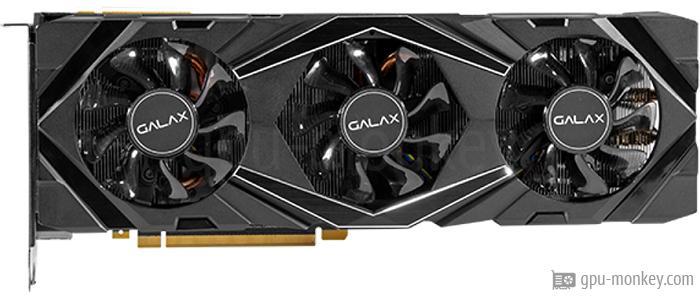

GALAX GeForce RTX 2080 Ti SG Edition
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GALAX GeForce RTX 2080 Ti SG Edition. The graphics card is based on the NVIDIA GeForce RTX 2080 Ti (Turing) and has 11 GB GDDR6 graphics memory with a memory bandwidth of 616 GB/s. The GALAX GeForce RTX 2080 Ti SG Edition has 68 execution units with 4352 shaders.
GPUThe GALAX GeForce RTX 2080 Ti SG Edition has 4352 shaders and 68 execution units. The graphics card thus achieves a theoretical FP32 computing power of 14.23 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 2080 Ti |
| GPU Chip: | TU102 (Turing) |
| Streaming Multiprocessors: | 68 |
| Shader: | 4352 |
| Render Output Units: | 88 |
| Texture Units: | 272 |
| Raytracing Cores: | 68 |
MemoryThe GALAX GeForce RTX 2080 Ti SG Edition can use 11 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 616 GB/s on a 352 bit wide memory interface. |
|
| Memory Size: | 11 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 616 GB/s |
| Memory Interface: | 352 bit |
Clock SpeedsThe base clock frequency of the GALAX GeForce RTX 2080 Ti SG Edition is 1.350 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.350 GHz |
| Boost Clock: | 1.635 GHz + 6 % |
| Avg (Game) Clock: | 1.545 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GALAX GeForce RTX 2080 Ti SG Edition is 250 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. |
|
| TDP: | 250 W |
| TDP (up): | -- |
| Tjunction max: | 89 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe GALAX GeForce RTX 2080 Ti SG Edition has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 80 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GALAX GeForce RTX 2080 Ti SG Edition. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | 1 |
FeaturesetThe GALAX GeForce RTX 2080 Ti SG Edition has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the GALAX GeForce RTX 2080 Ti SG Edition reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe GALAX GeForce RTX 2080 Ti SG Edition is 320 mm long and 110 mm high. With a width of 50 mm, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 320 mm |
| Height: | 110 mm |
| Width: | 50 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe GALAX GeForce RTX 2080 Ti SG Edition made in 12 nm was published in Q3/2018 for 999 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2018 |
| Launch Price: | 999 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | 28IULBUCT2GC |
| Documents: | data sheet |
1.350 GHz, 11 GB (250 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce RTX 2080 Ti SG Edition
11 GB GDDR6 |
||
