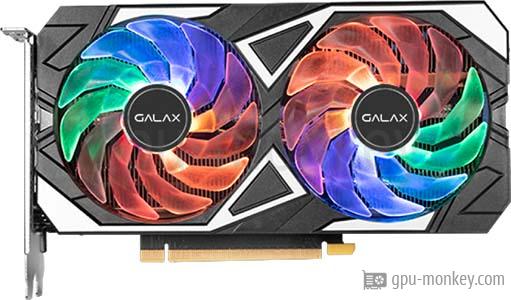

GALAX GeForce RTX 3050 EX (1-Click OC)
Benchmark and Specs

GALAX GeForce RTX 3050 EX (1-Click OC)

GPU

Based on: NVIDIA GeForce RTX 3050
GPU Chip: GA106-150-A1
Execution units: 20
Shader: 2560
Render Output Units: 48
Texture Units: 80

Memory

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14 Gbps
Memory Bandwith: 224 GB/s
Memory Interface: 128 bit

Clock Speeds

Base Clock: 1.552 GHz
Boost Clock: 1.837 GHzDeviation vs GPU group+ 3 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

TDP: 130 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 1 x 8-Pin

Cooler & Fans

Fan-Type: Axial
Fan 1: 2 x 92 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

Max. resolution: 7680x4320
DirectX: 12_2
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

Length: 224 mm
Height: 133 mm
Width: 44 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

GPU Interface: PCIe 4.0 x 16
Release date: Q1/2022
Release price: --
Structure size: 8 nm
Part-no: 35NSL8MD6YEX
Documents: data sheet

Benchmark results

3DMark Benchmark - Time Spy (Performance) Graphics score

3DMark is a benchmark that mainly measures the graphics card. As in almost every graphics card benchmark, however, the system's processor has an effect on the result. We therefore use a fast processor in order not to limit the graphics card during the test.
View all 3DMark Benchmark benchmark results



3DMark Benchmark - Fire Strike (Extreme) Graphics score

3DMark is a benchmark that mainly measures the graphics card. As in almost every graphics card benchmark, however, the system's processor has an effect on the result. We therefore use a fast processor in order not to limit the graphics card during the test.
View all 3DMark Benchmark benchmark results



Battlefield 5 - 2560x1440 (1440p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
AMD Radeon RX 590 AMD Radeon RX 590
8 GB GDDR5
76 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
6 GB GDDR6
75 fps (avg)
NVIDIA GeForce RTX 3050 NVIDIA GeForce RTX 3050
8 GB GDDR6
73 fps (avg)
GALAX GeForce RTX 3050 EX (1-Click OC) GALAX GeForce RTX 3050 EX (1-Click OC)
8 GB GDDR6
72 fps (avg)
AMD Radeon RX 5500 XT AMD Radeon RX 5500 XT
4 GB GDDR6
72 fps (avg)
AMD Radeon RX 580 8GB AMD Radeon RX 580 8GB
8 GB GDDR5
71 fps (avg)
NVIDIA GeForce GTX 1650 SUPER NVIDIA GeForce GTX 1650 SUPER
4 GB GDDR6
66 fps (avg)
View all Battlefield 5 benchmark results



Battlefield 5 - 1920x1080 (1080p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
6 GB GDDR6
109 fps (avg)
NVIDIA GeForce GTX 1660 Ti NVIDIA GeForce GTX 1660 Ti
6 GB GDDR6
104 fps (avg)
AMD Radeon RX 590 AMD Radeon RX 590
8 GB GDDR5
103 fps (avg)
GALAX GeForce RTX 3050 EX (1-Click OC) GALAX GeForce RTX 3050 EX (1-Click OC)
8 GB GDDR6
101 fps (avg)
NVIDIA GeForce RTX 3050 NVIDIA GeForce RTX 3050
8 GB GDDR6
101 fps (avg)
NVIDIA GeForce GTX 1070 NVIDIA GeForce GTX 1070
8 GB GDDR5
100 fps (avg)
NVIDIA GeForce GTX 1660 SUPER NVIDIA GeForce GTX 1660 SUPER
6 GB GDDR6
98 fps (avg)
View all Battlefield 5 benchmark results



Shadow of the Tomb Raider - 2560x1440 (1440p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
AMD RX Vega 64 AMD RX Vega 64
8 GB HBM2
62 fps (avg)
NVIDIA GeForce RTX 2060 12GB NVIDIA GeForce RTX 2060 12GB
12 GB GDDR6
60 fps (avg)
NVIDIA GeForce RTX 3050 NVIDIA GeForce RTX 3050
8 GB GDDR6
59 fps (avg)
GALAX GeForce RTX 3050 EX (1-Click OC) GALAX GeForce RTX 3050 EX (1-Click OC)
8 GB GDDR6
59 fps (avg)
AMD RX Vega 56 AMD RX Vega 56
8 GB HBM2
57 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
6 GB GDDR6
54 fps (avg)
NVIDIA GeForce GTX 1660 Ti NVIDIA GeForce GTX 1660 Ti
6 GB GDDR6
52 fps (avg)
View all Shadow of the Tomb Raider benchmark results



Shadow of the Tomb Raider - 1920x1080 (1080p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
View all Shadow of the Tomb Raider benchmark results



Crypto-Mining Ethereum Hashrate (MH/s) - Ethash Hashrate

Ethash is the Proof-of-Work (PoW) algorithm used for the crypto currency Ethereum. Ethash is based on the Dagger-Hashimoto algorithm, but has been significantly changed in some places. For example, the memory requirement (GPU memory) was significantly increased in order to make it more difficult or even to prevent the calculation of the algorithm on so-called ASICs (Application Specific Integrated Circuits). Our benchmark results are based on a slight overclocking of the graphics card and the GPU memory. The hashrates were achieved under Hive OS with moderate overclocking settings.

If you are looking for a reliable cryptocurrency exchange that regularly includes new cryptocurrencies, we recommend Kraken.com.
View all Crypto-Mining Ethereum Hashrate (MH/s) benchmark results



Crypto-Mining Ergo Hashrate (MH/s) - Autolykos 2 Hashrate

The crypto currency Ergo is based on the Autolykos algorithm, which was updated in version 2 (Autolykos 2) in early 2021. The Autolykos 2 algorithm is based on the PoW concept and can be efficiently calculated by a graphics card. When calculating Ergo Coins, ASICs have no efficiency advantage over modern graphics cards, which should make Ergo attractive for as many miners as possible. The Ergo protocol is based on the blockchain and has been optimized for a very long shelf life. The hashrates were achieved under Hive OS with moderate overclocking settings.

If you are looking for a reliable cryptocurrency exchange that regularly includes new cryptocurrencies, we recommend Kraken.com.
View all Crypto-Mining Ergo Hashrate (MH/s) benchmark results



Crypto-Mining Ravencoin Hashrate (MH/s) - KawPow Hashrate

The KawPoW algorithm has been used with the crypto currency Ravencoin since May 2020. Previously, Ravencoin used ProgPoW (X16R and X16Rv2). KawPoW is a Proof-of-Work (PoW) algorithm and is calculated the fastest with a modern graphics card. KawPoW is based on a changing algorithm (X15 and SHA51) and can therefore not be calculated via ASIC. The developers want to protect Ravencoin from large mining farms that often use ASICs. In addition to Ravencoin, other cryptocurrencies are based on KawPoW, including Hilux and Gravium. The hashrates were achieved under Hive OS with moderate overclocking settings.

If you are looking for a reliable cryptocurrency exchange that regularly includes new cryptocurrencies, we recommend Kraken.com.
View all Crypto-Mining Ravencoin Hashrate (MH/s) benchmark results



FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.

View all FP32 Performance (Single-precision TFLOPS) benchmark results
