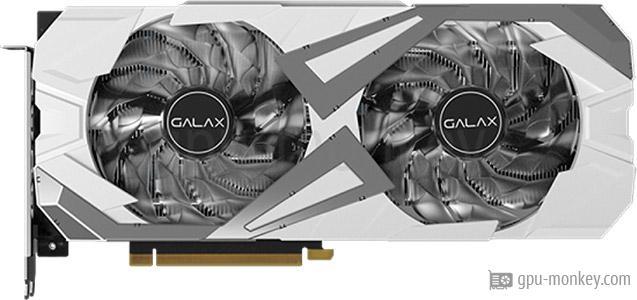

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the GALAX GeForce RTX 3070 EX White (1-Click OC) LHR are listed on this page. The graphics card is based on the GA104-302-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The GALAX GeForce RTX 3070 EX White (1-Click OC) LHR can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The GALAX GeForce RTX 3070 EX White (1-Click OC) LHR has 46 execution units with 5888 shaders. This gives the graphics card a theoretical FP32 computing power of 21.02 TFLOPS.

Based on: NVIDIA GeForce RTX 3070 LHR
GPU Chip: GA104-302-A1 (Ampere)
Streaming Multiprocessors: 46
Shader: 5888
Render Output Units: 96
Texture Units: 184
Raytracing Cores: 46

Memory

The GALAX GeForce RTX 3070 EX White (1-Click OC) LHR is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

The base frequency of this graphics card is 1.500 GHz and the manufacturer specifies the maximum turbo clock as 1.785 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.500 GHz
Boost Clock: 1.785 GHzDeviation vs GPU group+ 3 %
Avg (Game) Clock: 1.770 GHz
Overclocking: Yes

Thermal Design

The GALAX GeForce RTX 3070 EX White (1-Click OC) LHR is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 220 W.

TDP: 220 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

Graphics processor and graphics memory of the GALAX GeForce RTX 3070 EX White (1-Click OC) LHR are cooled by a Air cooling.

Fan-Type: Axial
Fan 1: 2 x 102 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the GALAX GeForce RTX 3070 EX White (1-Click OC) LHR.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the GALAX GeForce RTX 3070 EX White (1-Click OC) LHR it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

This area lists the video codecs that the GALAX GeForce RTX 3070 EX White (1-Click OC) LHR can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The GALAX GeForce RTX 3070 EX White (1-Click OC) LHR needs the space of 3 PCIe-Slots in a case. It is 299 mm long, 139 mm high and 58 mm wide.

Length: 299 mm
Height: 139 mm
Width: 58 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The GALAX GeForce RTX 3070 EX White (1-Click OC) LHR was released in Q4/2020 at a price of 499 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 499 $ (Reference)
Structure size: 8 nm
Part-no: 37NSL6MD2WEW
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
47 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
46 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
56 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
55 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
84 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
82 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
23 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
22 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
52 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
50 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
101 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
98 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
81 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
81 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
145 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
141 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3070 EX White (1-Click OC) LHR GALAX GeForce RTX 3070 EX White (1-Click OC) LHR
8 GB GDDR6
193 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
188 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
