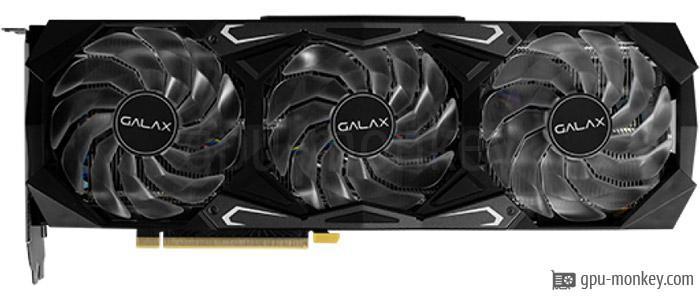

GALAX GeForce RTX 3070 SG (1-Click OC) LHR


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the GALAX GeForce RTX 3070 SG (1-Click OC) LHR. The graphics card is based on the NVIDIA GeForce RTX 3070 LHR (Ampere) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 448 GB/s. The GALAX GeForce RTX 3070 SG (1-Click OC) LHR has 46 execution units with 5888 shaders.

GPU

The GALAX GeForce RTX 3070 SG (1-Click OC) LHR has 5888 shaders and 46 execution units. The graphics card thus achieves a theoretical FP32 computing power of 20.49 TFLOPS.

Based on: NVIDIA GeForce RTX 3070 LHR
GPU Chip: GA104-302-A1 (Ampere)
Streaming Multiprocessors: 46
Shader: 5888
Render Output Units: 96
Texture Units: 184
Raytracing Cores: 46

Memory

The GALAX GeForce RTX 3070 SG (1-Click OC) LHR can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface.

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

The base clock frequency of the GALAX GeForce RTX 3070 SG (1-Click OC) LHR is 1.500 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.500 GHz
Boost Clock: 1.740 GHzDeviation vs GPU group+ 1 %
Avg (Game) Clock: 1.725 GHz
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the GALAX GeForce RTX 3070 SG (1-Click OC) LHR is 220 W. The graphics card is supplied with energy via the 1 x 8-Pin connector.

TDP: 220 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 1 x 8-Pin

Cooler & Fans

The GALAX GeForce RTX 3070 SG (1-Click OC) LHR has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 92 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the GALAX GeForce RTX 3070 SG (1-Click OC) LHR.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The GALAX GeForce RTX 3070 SG (1-Click OC) LHR has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

The video codecs accelerated in hardware by the GALAX GeForce RTX 3070 SG (1-Click OC) LHR reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The GALAX GeForce RTX 3070 SG (1-Click OC) LHR is 329 mm long and 130 mm high. With a width of 61 mm, the graphics card requires 3 PCIe-Slots in the case.

Length: 329 mm
Height: 130 mm
Width: 61 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The GALAX GeForce RTX 3070 SG (1-Click OC) LHR made in 8 nm was published in Q4/2020 for 499 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 499 $ (Reference)
Structure size: 8 nm
Part-no: 37NSL6MD1GSH
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
45 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
46 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
54 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
55 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
82 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
82 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
22 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
22 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
50 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
50 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
99 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
98 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
79 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
81 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
141 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
141 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3070 SG (1-Click OC) LHR GALAX GeForce RTX 3070 SG (1-Click OC) LHR
8 GB GDDR6
188 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
188 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
