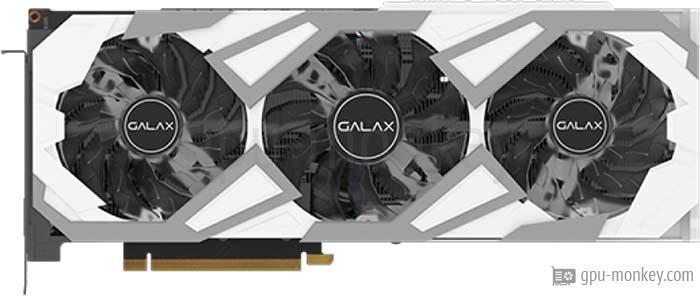

GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR. The graphics card is based on the NVIDIA GeForce RTX 3080 12GB (Ampere) and has 12 GB GDDR6X graphics memory with a memory bandwidth of 912 GB/s. The GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR has 70 execution units with 8960 shaders.
GPUThe GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR has 8960 shaders and 70 execution units. The graphics card thus achieves a theoretical FP32 computing power of 31.72 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3080 12GB |
| GPU Chip: | GA102 (Ampere) |
| Streaming Multiprocessors: | 70 |
| Shader: | 8960 |
| Render Output Units: | 112 |
| Texture Units: | 280 |
| Raytracing Cores: | 70 |
MemoryThe GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR can use 12 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 912 GB/s on a 384 bit wide memory interface. |
|
| Memory Size: | 12 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.188 GHz |
| Memory Speed: | 19.0 Gbps |
| Memory bandwidth: | 912 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base clock frequency of the GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR is 1.260 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.260 GHz |
| Boost Clock: | 1.770 GHz + 4 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR is 350 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. |
|
| TDP: | 350 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 92 mm |
| Fan 2: | 1 x 102 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThe video codecs accelerated in hardware by the GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR is 330 mm long and 142 mm high. With a width of 58 mm, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 330 mm |
| Height: | 142 mm |
| Width: | 58 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR made in 8 nm was published in Q1/2022 for 699 $ (Reference). |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q1/2022 |
| Launch Price: | 699 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | 38NOM5MD2GQA |
| Documents: | data sheet |
1.260 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce RTX 3080 12GB EX Gamer White (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,159 entries
5,159 entries
Cyberpunk 2077
2,942 entries
2,942 entries
The Last of Us Part 1
2,058 entries
2,058 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
FP32 Performance
5,522 entries
5,522 entries
