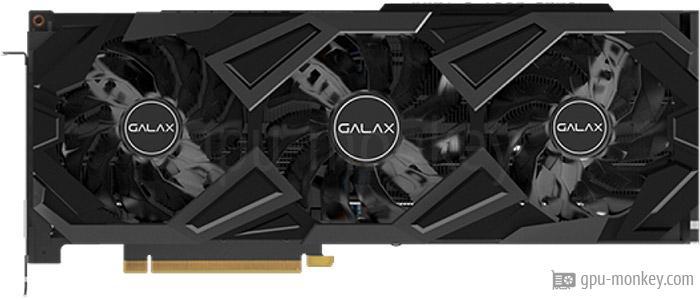

GPUThe GALAX GeForce RTX 3080 EX Gamer (1-Click OC) has 68 execution units with 8704 shaders. This gives the graphics card a theoretical FP32 computing power of 30.81 TFLOPS. |
|
Based on: | NVIDIA GeForce RTX 3080 |
GPU Chip: | GA102-200-K1-A1 (Ampere) |
Streaming Multiprocessors: | 68 |
Shader: | 8704 |
Render Output Units: | 96 |
Texture Units: | 272 |
Raytracing Cores: | 68 |
MemoryThe GALAX GeForce RTX 3080 EX Gamer (1-Click OC) is equipped with 10 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps. |
|
Memory Size: | 10 GB |
Memory Type: | GDDR6X |
Memory Clock: | 1.188 GHz |
Memory Speed: | 19.0 Gbps |
Memory bandwidth: | 760 GB/s |
Memory Interface: | 320 bit |
Clock SpeedsThe base frequency of this graphics card is 1.440 GHz and the manufacturer specifies the maximum turbo clock as 1.770 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
Base Clock: | 1.440 GHz |
Boost Clock: | 1.770 GHz+ 4 % |
Avg (Game) Clock: | 1.755 GHz |
Overclocking: | Yes |
Thermal DesignThe GALAX GeForce RTX 3080 EX Gamer (1-Click OC) is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 320 W. |
|
TDP: | 320 W |
TDP (up): | 370 W |
Tjunction max: | 93 °C |
PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the GALAX GeForce RTX 3080 EX Gamer (1-Click OC) are cooled by a Air cooling. |
|
Fan-Type: | Axial |
Fan 1: | 1 x 102 mm |
Fan 2: | 2 x 92 mm |
Cooler-Type: | Air cooling |
Noise (Idle): | 0 dB / Silent |
Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the GALAX GeForce RTX 3080 EX Gamer (1-Click OC). |
|
Max. Displays: | 4 |
HDCP-Version: | 2.3 |
HDMI Ports: | 1x HDMI v2.1 |
DP Ports: | 3x DP v1.4a |
DVI Ports: | -- |
VGA Ports: | -- |
USB-C Ports: | -- |
FeaturesetWith the GALAX GeForce RTX 3080 EX Gamer (1-Click OC) it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
Max. resolution: | 7680x4320 |
DirectX: | 12_2 (Ultimate) |
Raytracing: | Yes |
DLSS / FSR: | Yes |
LED: | Addressable LED |
Supported Video CodecsThis area lists the video codecs that the GALAX GeForce RTX 3080 EX Gamer (1-Click OC) can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
h264: | Decode / Encode |
h265 / HEVC: | Decode / Encode |
VP8: | Decode |
VP9: | Decode |
AV1: | Decode |
DimensionsThe GALAX GeForce RTX 3080 EX Gamer (1-Click OC) needs the space of 3 PCIe-Slots in a case. It is 330 mm long, 142 mm high and 58 mm wide. |
|
Length: | 330 mm |
Height: | 142 mm |
Width: | 58 mm |
Width (Slots): | 3 PCIe-Slots |
Weight: | -- |
Additional dataThe GALAX GeForce RTX 3080 EX Gamer (1-Click OC) was released in Q4/2020 at a price of 699 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
GPU Interface: | PCIe 4.0 x 16 |
Release date: | Q4/2020 |
Launch Price: | 699 $ (Reference) |
Structure size: | 8 nm |
Part-no: | 38NWM3MD1JAA |
Documents: | data sheet |
