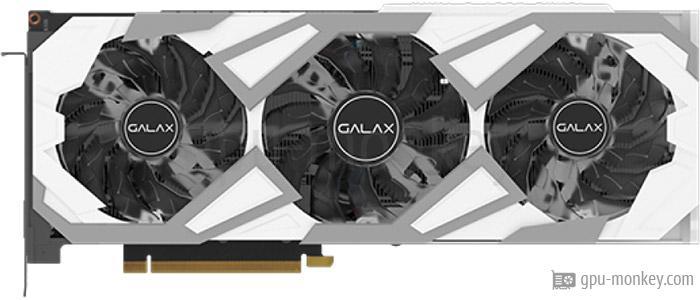

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the GALAX GeForce RTX 3080 EX Gamer White (1-Click OC). The graphics card is based on the NVIDIA GeForce RTX 3080 (Ampere) and has 10 GB GDDR6X graphics memory with a memory bandwidth of 760 GB/s. The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) has 68 execution units with 8704 shaders.

GPU

The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) has 8704 shaders and 68 execution units. The graphics card thus achieves a theoretical FP32 computing power of 30.81 TFLOPS.

Based on: NVIDIA GeForce RTX 3080
GPU Chip: GA102-200-K1-A1 (Ampere)
Streaming Multiprocessors: 68
Shader: 8704
Render Output Units: 96
Texture Units: 272
Raytracing Cores: 68

Memory

The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) can use 10 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 760 GB/s on a 320 bit wide memory interface.

Memory Size: 10 GB
Memory Type: GDDR6X
Memory Clock: 1.188 GHz
Memory Speed: 19.0 Gbps
Memory bandwidth: 760 GB/s
Memory Interface: 320 bit

Clock Speeds

The base clock frequency of the GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) is 1.440 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.440 GHz
Boost Clock: 1.770 GHzDeviation vs GPU group+ 4 %
Avg (Game) Clock: 1.755 GHz
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) is 320 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 320 W
TDP (up): 370 W
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 1 x 102 mm
Fan 2: 2 x 92 mm
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the GALAX GeForce RTX 3080 EX Gamer White (1-Click OC).

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

The video codecs accelerated in hardware by the GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) is 330 mm long and 142 mm high. With a width of 58 mm, the graphics card requires 3 PCIe-Slots in the case.

Length: 330 mm
Height: 142 mm
Width: 58 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) made in 8 nm was published in Q4/2020 for 699 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 699 $ (Reference)
Structure size: 8 nm
Part-no: 38NWM3MD2GAC
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
61 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
61 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
72 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
72 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
108 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
106 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
37 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
36 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
75 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
72 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
124 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
120 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
106 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
107 fps (avg)

2560x1440 (1440p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
181 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
162 fps (avg)

1920x1080 (1080p)

GALAX GeForce RTX 3080 EX Gamer White (1-Click OC) GALAX GeForce RTX 3080 EX Gamer White (1-Click OC)
10 GB GDDR6X
206 fps (avg)
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080
Average of gpu group
190 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
