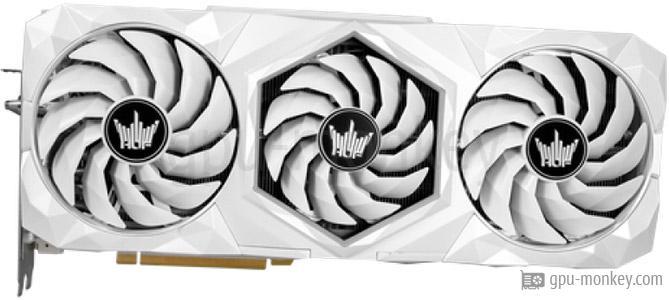

The GALAX GeForce RTX 3080 Ti HOF Premium has 80 execution units with 10240 shaders. This gives the graphics card a theoretical FP32 computing power of 36.86 TFLOPS.
- GPU Chip
- GA102-225-A1 (Ampere)
- Streaming Multiprocessors
- 80
- Shader
- 10240
- Render Output Units
- 112
- Texture Units
- 320
- Raytracing Cores
- 80
The GALAX GeForce RTX 3080 Ti HOF Premium is equipped with 12 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps.
- Memory Size
- 12 GB
- Memory Type
- GDDR6X
- Memory Clock
- 1.188 GHz
- Memory Speed
- 19.0 Gbps
- Memory bandwidth
- 912 GB/s
- Memory Interface
- 384 bit
The base frequency of this graphics card is 1.365 GHz and the manufacturer specifies the maximum turbo clock as 1.800 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.365 GHz
- Boost Clock
- 1.800 GHz+8 %
- Overclocking
- Yes
The GALAX GeForce RTX 3080 Ti HOF Premium is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 350 W.
- TDP
- 350 W
- Tjunction max
- 93 °C
- PCIe-Power
- 3 x 8-Pin
Graphics processor and graphics memory of the GALAX GeForce RTX 3080 Ti HOF Premium are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 2 x 102 mm
- Fan 2
- 1 x 92 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 monitors can be operated with the GALAX GeForce RTX 3080 Ti HOF Premium.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1
- DisplayPort
- 3x DP 1.4a
With the GALAX GeForce RTX 3080 Ti HOF Premium it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- Addressable LED
This area lists the video codecs that the GALAX GeForce RTX 3080 Ti HOF Premium can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The GALAX GeForce RTX 3080 Ti HOF Premium needs the space of 4 PCIe-Slots in a case. It is 352 mm long, 160 mm high and 68 mm wide.
- Length
- 352 mm
- Height
- 160 mm
- Width
- 68 mm
- Width (Slots)
- 4 PCIe-Slots
- SFF-Ready
- No
The GALAX GeForce RTX 3080 Ti HOF Premium was released in Q2/2021 at a price of 1,199 $. The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q2/2021
- Launch Price
- 1,199 $ (Reference)
- Structure size
- 8 nm
- Part-no
- 38IOM5MD3BAW
