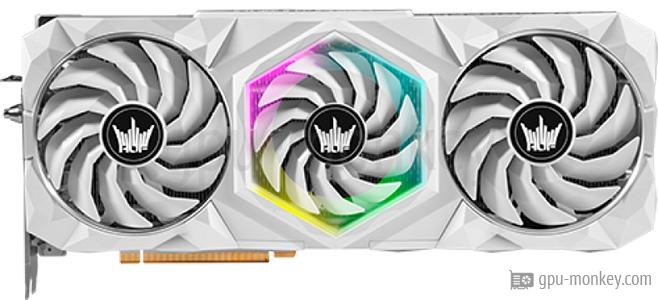

GALAX GeForce RTX 3090 Ti HOF
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GALAX GeForce RTX 3090 Ti HOF. The graphics card is based on the NVIDIA GeForce RTX 3090 Ti (Ampere) and has 24 GB GDDR6X graphics memory with a memory bandwidth of 1008 GB/s. The GALAX GeForce RTX 3090 Ti HOF has 84 execution units with 10752 shaders.
GPUThe GALAX GeForce RTX 3090 Ti HOF has 10752 shaders and 84 execution units. The graphics card thus achieves a theoretical FP32 computing power of 41.61 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3090 Ti |
| GPU Chip: | GA102-350-A1 (Ampere) |
| Streaming Multiprocessors: | 84 |
| Shader: | 10752 |
| Render Output Units: | 112 |
| Texture Units: | 336 |
| Raytracing Cores: | 84 |
MemoryThe GALAX GeForce RTX 3090 Ti HOF can use 24 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 1008 GB/s on a 384 bit wide memory interface. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.313 GHz |
| Memory Speed: | 21.0 Gbps |
| Memory bandwidth: | 1008 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base clock frequency of the GALAX GeForce RTX 3090 Ti HOF is 1.560 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.560 GHz -7 % |
| Boost Clock: | 1.935 GHz + 4 % |
| Avg (Game) Clock: | 1.920 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GALAX GeForce RTX 3090 Ti HOF is 450 W. The graphics card is supplied with energy via the 6 x 8-Pin connector. |
|
| TDP: | 450 W |
| TDP (up): | -- |
| Tjunction max: | 92 °C |
| PCIe-Power: | 6 x 8-Pin |
Cooler & FansThe GALAX GeForce RTX 3090 Ti HOF has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 102 mm |
| Fan 2: | 1 x 92 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GALAX GeForce RTX 3090 Ti HOF. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GALAX GeForce RTX 3090 Ti HOF has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThe video codecs accelerated in hardware by the GALAX GeForce RTX 3090 Ti HOF reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe GALAX GeForce RTX 3090 Ti HOF is 352 mm long and 160 mm high. With a width of 68 mm, the graphics card requires 4 PCIe-Slots in the case. |
|
| Length: | 352 mm |
| Height: | 160 mm |
| Width: | 68 mm |
| Width (Slots): | 4 PCIe-Slots |
| Weight: | -- |
Additional dataThe GALAX GeForce RTX 3090 Ti HOF made in 8 nm was published in Q2/2022 for 1,999 $ (Reference). |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2022 |
| Launch Price: | 1,999 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | 39IXM5MD5ZEH |
| Documents: | data sheet |
1.560 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce RTX 3090 Ti HOF
24 GB GDDR6X |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
Cyberpunk 2077
2,942 entries
2,942 entries
The Last of Us Part 1
2,058 entries
2,058 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
FP32 Performance
5,522 entries
5,522 entries
