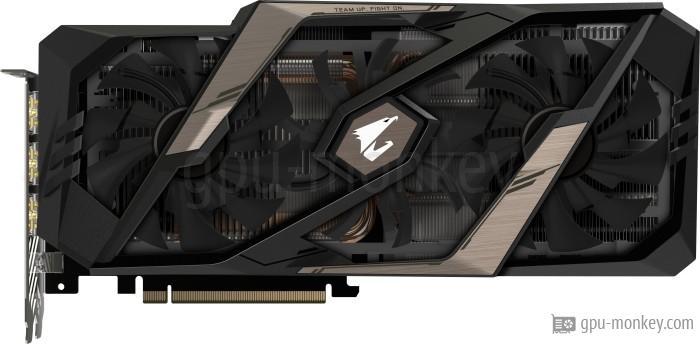

GIGABYTE AORUS GeForce RTX 2080 8G
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GIGABYTE AORUS GeForce RTX 2080 8G. The graphics card is based on the NVIDIA GeForce RTX 2080 (Turing) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 448 GB/s. The GIGABYTE AORUS GeForce RTX 2080 8G has 46 execution units with 2944 shaders.
GPUThe GIGABYTE AORUS GeForce RTX 2080 8G has 2944 shaders and 46 execution units. The graphics card thus achieves a theoretical FP32 computing power of 10.87 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 2080 |
| GPU Chip: | TU104 (Turing) |
| Streaming Multiprocessors: | 46 |
| Shader: | 2944 |
| Render Output Units: | 64 |
| Texture Units: | 184 |
| Raytracing Cores: | 46 |
MemoryThe GIGABYTE AORUS GeForce RTX 2080 8G can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 448 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the GIGABYTE AORUS GeForce RTX 2080 8G is 1.515 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.515 GHz |
| Boost Clock: | 1.845 GHz + 8 % |
| Avg (Game) Clock: | 1.710 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GIGABYTE AORUS GeForce RTX 2080 8G is 215 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. |
|
| TDP: | 215 W |
| TDP (up): | 250 W+ 5 % |
| Tjunction max: | 88 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe GIGABYTE AORUS GeForce RTX 2080 8G has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 35 dB |
| Noise (Load): | 44 dB |
ConnectivityUp to 4 screens can be connected to the GIGABYTE AORUS GeForce RTX 2080 8G. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 3x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | 1 |
FeaturesetThe GIGABYTE AORUS GeForce RTX 2080 8G has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | GIGABYTE RGB Fusion |
Supported Video CodecsThe video codecs accelerated in hardware by the GIGABYTE AORUS GeForce RTX 2080 8G reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe GIGABYTE AORUS GeForce RTX 2080 8G is 290 mm long and 134 mm high. With a width of 60 mm, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 290 mm |
| Height: | 134 mm |
| Width: | 60 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe GIGABYTE AORUS GeForce RTX 2080 8G made in 12 nm was published in Q4/2018 for 769 $. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q4/2018 |
| Launch Price: | 769 $ |
| Structure size: | 12 nm |
| Part-no: | GV-N2080AORUS-8GC |
| Documents: | data sheet |
1.515 GHz, 8 GB (215 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GIGABYTE AORUS GeForce RTX 2080 8G
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
