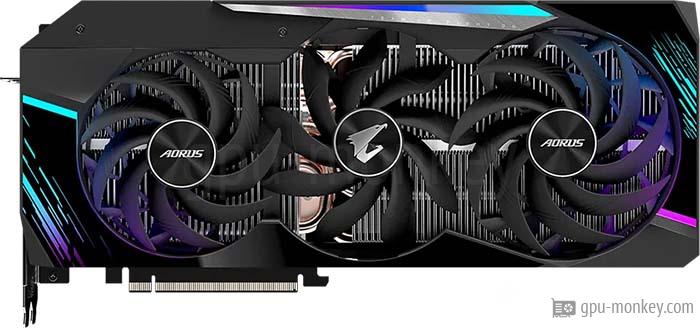

GIGABYTE AORUS GeForce RTX 3080 MASTER 12G
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the GIGABYTE AORUS GeForce RTX 3080 MASTER 12G are listed on this page. The graphics card is based on the GA102 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The GIGABYTE AORUS GeForce RTX 3080 MASTER 12G can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe GIGABYTE AORUS GeForce RTX 3080 MASTER 12G has 70 execution units with 8960 shaders. This gives the graphics card a theoretical FP32 computing power of 32.79 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3080 12GB |
| GPU Chip: | GA102 (Ampere) |
| Streaming Multiprocessors: | 70 |
| Shader: | 8960 |
| Render Output Units: | 112 |
| Texture Units: | 280 |
| Raytracing Cores: | 70 |
MemoryThe GIGABYTE AORUS GeForce RTX 3080 MASTER 12G is equipped with 12 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps. |
|
| Memory Size: | 12 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.188 GHz |
| Memory Speed: | 19.0 Gbps |
| Memory bandwidth: | 912 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base frequency of this graphics card is 1.260 GHz and the manufacturer specifies the maximum turbo clock as 1.830 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.260 GHz |
| Boost Clock: | 1.830 GHz + 7 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe GIGABYTE AORUS GeForce RTX 3080 MASTER 12G is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 350 W. |
|
| TDP: | 350 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 3 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the GIGABYTE AORUS GeForce RTX 3080 MASTER 12G are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 100 mm |
| Fan 2: | 2 x 115 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the GIGABYTE AORUS GeForce RTX 3080 MASTER 12G. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 3x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the GIGABYTE AORUS GeForce RTX 3080 MASTER 12G it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | GIGABYTE RGB Fusion |
Supported Video CodecsThis area lists the video codecs that the GIGABYTE AORUS GeForce RTX 3080 MASTER 12G can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe GIGABYTE AORUS GeForce RTX 3080 MASTER 12G needs the space of 4 PCIe-Slots in a case. It is 319 mm long, 140 mm high and 70 mm wide. |
|
| Length: | 319 mm |
| Height: | 140 mm |
| Width: | 70 mm |
| Width (Slots): | 4 PCIe-Slots |
| Weight: | -- |
Additional dataThe GIGABYTE AORUS GeForce RTX 3080 MASTER 12G was released in Q1/2022 at a price of 699 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q1/2022 |
| Launch Price: | 699 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | GV-N3080AORUS M-12GD |
| Documents: | data sheet |
