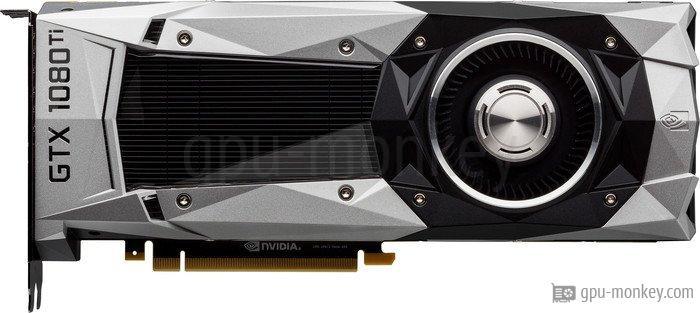

GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G. The graphics card is based on the NVIDIA GeForce GTX 1080 Ti (Pascal) and has 11 GB GDDR5X graphics memory with a memory bandwidth of 484 GB/s. The GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G has 28 execution units with 3584 shaders.
GPUThe GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G has 3584 shaders and 28 execution units. The graphics card thus achieves a theoretical FP32 computing power of 11.34 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1080 Ti |
| GPU Chip: | GP102-350-K1-A1 (Pascal) |
| Streaming Multiprocessors: | 28 |
| Shader: | 3584 |
| Render Output Units: | 88 |
| Texture Units: | 224 |
| Raytracing Cores: | 0 |
MemoryThe GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G can use 11 GB graphics memory of the type GDDR5X. The graphics card thus achieves a memory bandwidth of 484 GB/s on a 352 bit wide memory interface. |
|
| Memory Size: | 11 GB |
| Memory Type: | GDDR5X |
| Memory Clock: | 1.376 GHz |
| Memory Speed: | 11.0 Gbps |
| Memory bandwidth: | 484 GB/s |
| Memory Interface: | 352 bit |
Clock SpeedsThe base clock frequency of the GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G is 1.480 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.480 GHz |
| Boost Clock: | 1.582 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G is 280 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector. |
|
| TDP: | 280 W + 12 % |
| TDP (up): | -- |
| Tjunction max: | 91 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G has a total of 1 Radial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Radial |
| Fan 1: | 1 x 70 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G is 267 mm long and 111 mm high. With a width of 40 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 267 mm |
| Height: | 111 mm |
| Width: | 40 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G made in 16 nm was published in Q1/2017 for 699 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q1/2017 |
| Launch Price: | 699 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | GV-N108TD5X-B |
| Documents: | data sheet |
1.480 GHz, 11 GB (280 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GIGABYTE GeForce GTX 1080 Ti Founders Edition 11G
11 GB GDDR5X |
||
