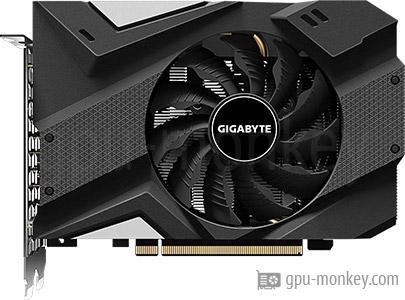

GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GIGABYTE GeForce GTX 1660 MINI ITX OC 6G. The graphics card is based on the NVIDIA GeForce GTX 1660 (Turing) and has 6 GB GDDR5 graphics memory with a memory bandwidth of 192 GB/s. The GIGABYTE GeForce GTX 1660 MINI ITX OC 6G has 22 execution units with 1408 shaders.
GPUThe GIGABYTE GeForce GTX 1660 MINI ITX OC 6G has 1408 shaders and 22 execution units. The graphics card thus achieves a theoretical FP32 computing power of 5.07 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1660 |
| GPU Chip: | TU116-300-A1 (Turing) |
| Streaming Multiprocessors: | 22 |
| Shader: | 1408 |
| Render Output Units: | 48 |
| Texture Units: | 88 |
| Raytracing Cores: | 0 |
MemoryThe GIGABYTE GeForce GTX 1660 MINI ITX OC 6G can use 6 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 192 GB/s on a 192 bit wide memory interface. |
|
| Memory Size: | 6 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.000 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 192 GB/s |
| Memory Interface: | 192 bit |
Clock SpeedsThe base clock frequency of the GIGABYTE GeForce GTX 1660 MINI ITX OC 6G is 1.530 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.530 GHz |
| Boost Clock: | 1.800 GHz + 1 % |
| Avg (Game) Clock: | 1.785 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GIGABYTE GeForce GTX 1660 MINI ITX OC 6G is 120 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 95 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe GIGABYTE GeForce GTX 1660 MINI ITX OC 6G has a total of 1 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 screens can be connected to the GIGABYTE GeForce GTX 1660 MINI ITX OC 6G. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GIGABYTE GeForce GTX 1660 MINI ITX OC 6G has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the GIGABYTE GeForce GTX 1660 MINI ITX OC 6G reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe GIGABYTE GeForce GTX 1660 MINI ITX OC 6G is 170 mm long and 121 mm high. With a width of 37 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 170 mm |
| Height: | 121 mm |
| Width: | 37 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe GIGABYTE GeForce GTX 1660 MINI ITX OC 6G made in 12 nm was published in Q1/2019 for 219 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q1/2019 |
| Launch Price: | 219 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | GV-N1660IXOC-6GD |
| Documents: | data sheet |
1.530 GHz, 6 GB (120 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
1920x1080 (1080p)
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1660
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
6 GB GDDR5 |
||
