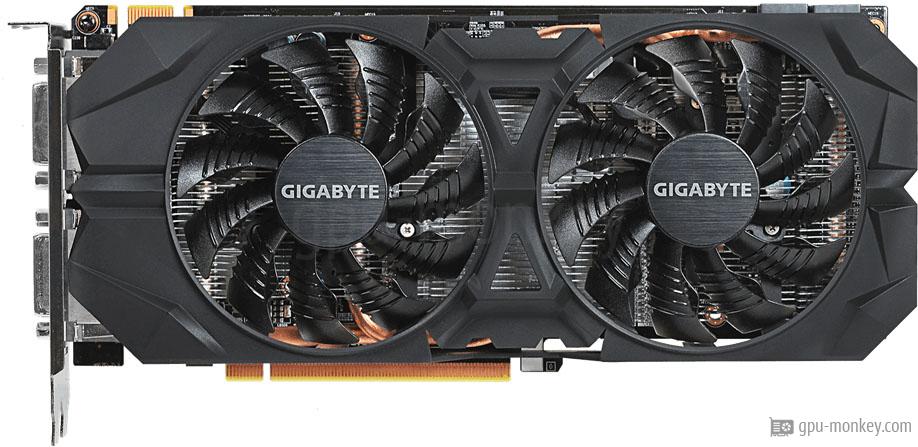

GIGABYTE GeForce GTX 950 G1 GAMING Benchmark and Specs

The GIGABYTE GeForce GTX 950 G1 GAMING has 768 shaders and 6 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.09 TFLOPS.

Based on

NVIDIA GeForce GTX 950

GPU Chip

GM206-250-A1 (Maxwell 2.0)

Streaming Multiprocessors

6

Shader

768

Render Output Units

32

Texture Units

48

The GIGABYTE GeForce GTX 950 G1 GAMING can use 2 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 106 GB/s on a 128 bit wide memory interface.

Memory Size

2 GB

Memory Type

GDDR5

Memory Clock

1.653 GHz

Memory Speed

6.6 Gbps

Memory bandwidth

106 GB/s

Memory Interface

128 bit

The base clock frequency of the GIGABYTE GeForce GTX 950 G1 GAMING is 1.165 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock

1.165 GHz+14 %

Boost Clock

1.355 GHz+14 %

Avg (Game) Clock

1.329 GHz

Overclocking

Yes

The TDP (Thermal Design Power) of the GIGABYTE GeForce GTX 950 G1 GAMING is 90 W. The graphics card is supplied with energy via the 2 x 6-Pin connector.

TDP

90 W

Tjunction max

95 °C

PCIe-Power

2 x 6-Pin

The GIGABYTE GeForce GTX 950 G1 GAMING has a total of 2 Axial fans to cool the graphics processor and graphics memory.

Fan-Type

Axial

Fan 1

2 x 90 mm

Cooler-Type

Air cooling

Noise (Idle)

0 dB / Silent

Up to 4 screens can be connected to the GIGABYTE GeForce GTX 950 G1 GAMING.

Max. Displays

4

HDCP

2.2

HDMI

1x HDMI 2.0

DisplayPort

3x DP 1.2

DVI

2

The GIGABYTE GeForce GTX 950 G1 GAMING has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard.

Max. resolution

4096x2160

DirectX

12_1

Raytracing

No

DLSS / FSR

No

LED

No LED lighting

The video codecs accelerated in hardware by the GIGABYTE GeForce GTX 950 G1 GAMING reduce the processor load and ensure lower energy consumption.

h264

Decode / Encode

h265 / HEVC

No

VP8

Decode

VP9

No

AV1

No

The GIGABYTE GeForce GTX 950 G1 GAMING is 244 mm long and 114 mm high. With a width of 36 mm, the graphics card requires 2 PCIe-Slots in the case.

Length

244 mm

Height

114 mm

Width

36 mm

Width (Slots)

2 PCIe-Slots

SFF-Ready

No

The GIGABYTE GeForce GTX 950 G1 GAMING made in 28 nm was published in Q2/2015 for 179 $.

GPU Interface

PCIe 3 x 16

Release date

Q2/2015

Launch Price

179 $

Structure size

28 nm

Part-no

GV-N950G1 GAMING-2GD

Documents

data sheet
