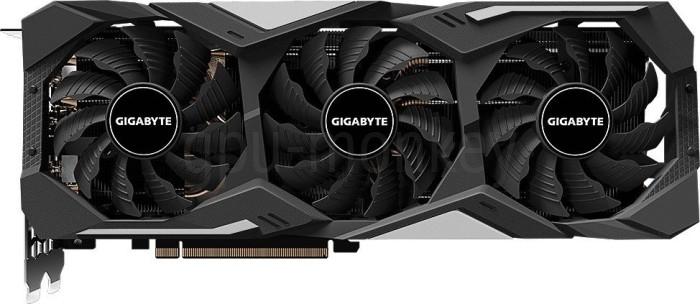

The GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G is equipped with 48 execution and 3072 shader units. With single precision, a theoretical FP32 computing power of 11.24 TFLOPS is achieved.
- GPU Chip
- TU104 (Turing)
- Streaming Multiprocessors
- 48
- Shader
- 3072
- Render Output Units
- 64
- Texture Units
- 192
- Raytracing Cores
- 48
The GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G has a 256 bit wide memory interface, with which a memory bandwidth of 496 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.938 GHz
- Memory Speed
- 15.5 Gbps
- Memory bandwidth
- 496 GB/s
- Memory Interface
- 256 bit
The manufacturer specifies the memory clock of the GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G with 1.650 GHz (base clock) or with 1.830 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.
- Base Clock
- 1.650 GHz
- Boost Clock
- 1.830 GHz+1 %
- Avg (Game) Clock
- 1.815 GHz
- Overclocking
- Yes
The GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 89 °C.
- TDP
- 250 W
- TDP (up)
- 280 W
- Tjunction max
- 89 °C
- PCIe-Power
- 1 x 6-Pin, 1 x 8-Pin
The GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 3 x 82 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
- Noise (Load)
- 44 dB
Up to 4 screens can be connected to the GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4a
The GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
Here is a list of which video codecs can be decoded / encoded by the GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G in hardware in order to minimize the processor load.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The dimensions of the GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G are 286 mm in length, 114 mm in height and 50 mm in width. Thus 3 PCIe-Slots are needed in a case.
- Length
- 286 mm
- Height
- 114 mm
- Width
- 50 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The GIGABYTE GeForce RTX 2080 SUPER Windforce OC 8G is manufactured in a structure width of 12 nm and has a PCIe 3.0 x 16 lanes interface. The graphics card was released in Q3/2019.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q3/2019
- Launch Price
- 749 $
- Structure size
- 12 nm
- Part-no
- GV-N208SWF3OC-8GD
