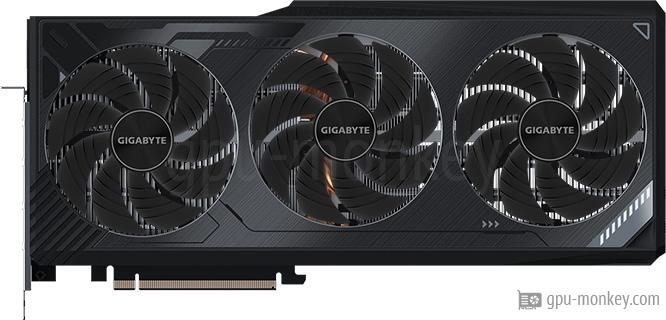

GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G is 1.905 GHz, so the graphics card achieves an FP32 computing power of 40.97 TFLOPS.
GPUThe GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G is equipped with 84 execution and 10752 shader units. With single precision, a theoretical FP32 computing power of 40.97 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 3090 Ti |
| GPU Chip: | GA102-350-A1 (Ampere) |
| Streaming Multiprocessors: | 84 |
| Shader: | 10752 |
| Render Output Units: | 112 |
| Texture Units: | 336 |
| Raytracing Cores: | 84 |
MemoryThe GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G has a 384 bit wide memory interface, with which a memory bandwidth of 1008 GB/s is achieved. In total, 24 GB GDDR6X graphics memory is available for the graphics card. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.313 GHz |
| Memory Speed: | 21.0 Gbps |
| Memory bandwidth: | 1008 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G with 1.560 GHz (base clock) or with 1.905 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.560 GHz -7 % |
| Boost Clock: | 1.905 GHz + 2 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 92 °C. |
|
| TDP: | 450 W |
| TDP (up): | -- |
| Tjunction max: | 92 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe dimensions of the GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G are 331 mm in length, 150 mm in height and 70 mm in width. Thus 4 PCIe-Slots are needed in a case. |
|
| Length: | 331 mm |
| Height: | 150 mm |
| Width: | 70 mm |
| Width (Slots): | 4 PCIe-Slots |
| Weight: | -- |
Additional dataThe GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q1/2022. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q1/2022 |
| Launch Price: | 1,999 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | GV-N309TGAMING OC-24GD |
| Documents: | data sheet |
1.560 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GIGABYTE GeForce RTX 3090 Ti GAMING OC 24G
24 GB GDDR6X |
||
