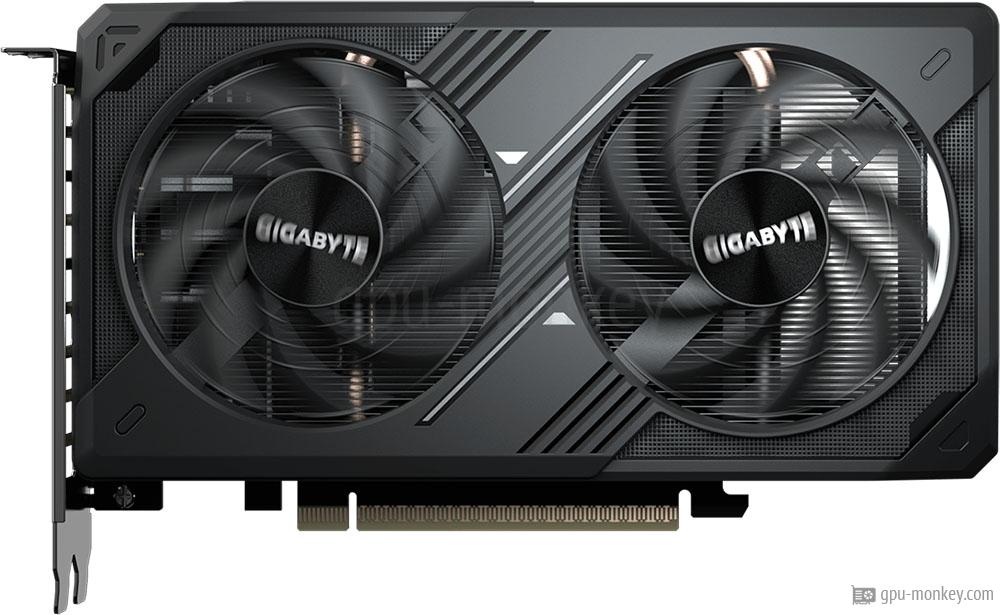

GIGABYTE GeForce RTX 5050 WINDFORCE Benchmark and Specs

The GIGABYTE GeForce RTX 5050 WINDFORCE is equipped with 20 execution and 2560 shader units. With single precision, a theoretical FP32 computing power of 13.17 TFLOPS is achieved.

Based on

NVIDIA GeForce RTX 5050

GPU Chip

GB207-300-A1 (Blackwell 2.0)

Streaming Multiprocessors

20

Shader

2560

Render Output Units

32

Texture Units

80

Raytracing Cores

20

The GIGABYTE GeForce RTX 5050 WINDFORCE has a 128 bit wide memory interface, with which a memory bandwidth of 320 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card.

Memory Size

8 GB

Memory Type

GDDR6

Memory Clock

2.500 GHz

Memory Speed

20.0 Gbps

Memory bandwidth

320 GB/s

Memory Interface

128 bit

The manufacturer specifies the memory clock of the GIGABYTE GeForce RTX 5050 WINDFORCE with 2.280 GHz (base clock) or with 2.572 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock

2.280 GHz-2 %

Boost Clock

2.572 GHz

Overclocking

Yes

The GIGABYTE GeForce RTX 5050 WINDFORCE has 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 85 °C.

TDP

100 W (Reference)

Tjunction max

85 °C

PCIe-Power

1 x 8-Pin

The GIGABYTE GeForce RTX 5050 WINDFORCE is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type

Axial

Fan 1

2 x 80 mm

Cooler-Type

Air cooling

Noise (Idle)

0 dB / Silent

Up to 4 screens can be connected to the GIGABYTE GeForce RTX 5050 WINDFORCE, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays

4

HDCP

2.3

HDMI

2x HDMI 2.1b

DisplayPort

2x DP 2.1b

The GIGABYTE GeForce RTX 5050 WINDFORCE supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution

7680x4320

DirectX

12_2 (Ultimate)

Raytracing

Yes

DLSS / FSR

Yes

LED

No LED lighting

Here is a list of which video codecs can be decoded / encoded by the GIGABYTE GeForce RTX 5050 WINDFORCE in hardware in order to minimize the processor load.

h264

Decode / Encode

h265 / HEVC

Decode / Encode

VP8

Decode / Encode

VP9

Decode / Encode

AV1

Decode / Encode

The dimensions of the GIGABYTE GeForce RTX 5050 WINDFORCE are 199 mm in length, 116 mm in height and 40 mm in width. Thus 2 PCIe-Slots are needed in a case.

Length

199 mm

Height

116 mm

Width

40 mm

Width (Slots)

2 PCIe-Slots

SFF-Ready

No

The GIGABYTE GeForce RTX 5050 WINDFORCE is manufactured in a structure width of 5 nm and has a PCIe 5 x 8 lanes interface. The graphics card was released in Q4/2025.

GPU Interface

PCIe 5 x 8

Release date

Q4/2025

Launch Price

249 $ (Reference)

Structure size

5 nm

Part-no

GV-N5050WF2-8GD

Documents

data sheet
