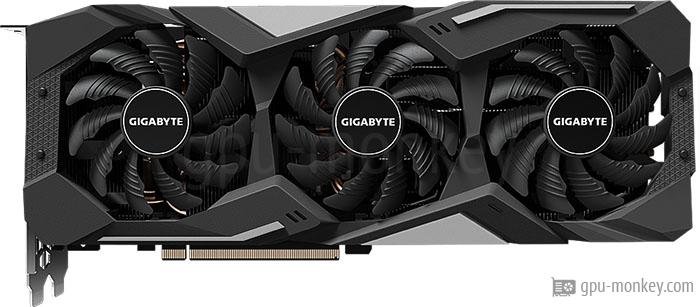

GPUThe GIGABYTE Radeon RX 5700 Gaming 8G is equipped with 36 execution and 2304 shader units. With single precision, a theoretical FP32 computing power of 7.95 TFLOPS is achieved. |
|
Based on: | AMD Radeon RX 5700 |
GPU Chip: | Navi 10 (RDNA 1) |
Streaming Multiprocessors: | 36 |
Shader: | 2304 |
Render Output Units: | 64 |
Texture Units: | 144 |
Raytracing Cores: | 0 |
MemoryThe GIGABYTE Radeon RX 5700 Gaming 8G has a 256 bit wide memory interface, with which a memory bandwidth of 448 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card. |
|
Memory Size: | 8 GB |
Memory Type: | GDDR6 |
Memory Clock: | 1.750 GHz |
Memory Speed: | 14.0 Gbps |
Memory bandwidth: | 448 GB/s |
Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the GIGABYTE Radeon RX 5700 Gaming 8G with 1.465 GHz (base clock) or with 1.725 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
Base Clock: | 1.465 GHz |
Boost Clock: | 1.725 GHz |
Avg (Game) Clock: | 1.625 GHz |
Overclocking: | Yes |
Thermal DesignThe GIGABYTE Radeon RX 5700 Gaming 8G has 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 98 °C. |
|
TDP: | 180 W |
TDP (up): | 220 W |
Tjunction max: | 98 °C |
PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe GIGABYTE Radeon RX 5700 Gaming 8G is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
Fan-Type: | Axial |
Fan 1: | 3 x 80 mm |
Fan 2: | -- |
Cooler-Type: | Air cooling |
Noise (Idle): | 0 dB / Silent |
Noise (Load): | 42 dB |
ConnectivityUp to 4 screens can be connected to the GIGABYTE Radeon RX 5700 Gaming 8G, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
Max. Displays: | 4 |
HDCP-Version: | 2.3 |
HDMI Ports: | 1x HDMI v2.0b |
DP Ports: | 3x DP v1.4 |
DVI Ports: | -- |
VGA Ports: | -- |
USB-C Ports: | -- |
FeaturesetThe GIGABYTE Radeon RX 5700 Gaming 8G supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
Max. resolution: | 7680x4320 |
DirectX: | 12_2 (Ultimate) |
Raytracing: | No |
DLSS / FSR: | Yes |
LED: | GIGABYTE RGB Fusion |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the GIGABYTE Radeon RX 5700 Gaming 8G in hardware in order to minimize the processor load. |
|
h264: | Decode / Encode |
h265 / HEVC: | Decode / Encode |
VP8: | Decode |
VP9: | Decode / Encode |
AV1: | No |
DimensionsThe dimensions of the GIGABYTE Radeon RX 5700 Gaming 8G are 280 mm in length, 115 mm in height and 50 mm in width. Thus 3 PCIe-Slots are needed in a case. |
|
Length: | 280 mm |
Height: | 115 mm |
Width: | 50 mm |
Width (Slots): | 3 PCIe-Slots |
Weight: | -- |
Additional dataThe GIGABYTE Radeon RX 5700 Gaming 8G is manufactured in a structure width of 7 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q3/2019. |
|
GPU Interface: | PCIe 4.0 x 16 |
Release date: | Q3/2019 |
Launch Price: | 429 $ |
Structure size: | 7 nm |
Part-no: | GV-R57GAMING-8GD |
Documents: | data sheet |
