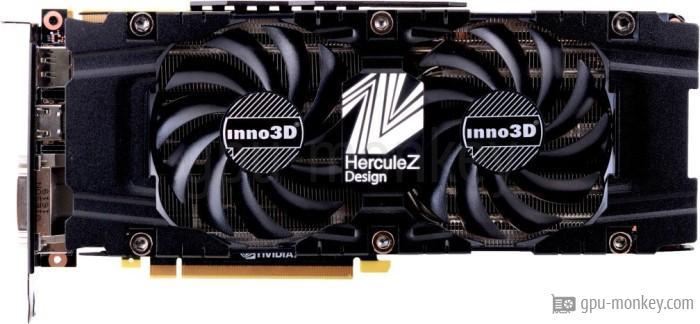

INNO3D GeForce GTX 1060 Gaming OC V2 6GB
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the INNO3D GeForce GTX 1060 Gaming OC V2 6GB are listed on this page. The graphics card is based on the GP106-400-A1 (Pascal) graphics chip, which is manufactured with a structure width of 16 nm. The INNO3D GeForce GTX 1060 Gaming OC V2 6GB can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe INNO3D GeForce GTX 1060 Gaming OC V2 6GB has 10 execution units with 1280 shaders. This gives the graphics card a theoretical FP32 computing power of 4.38 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1060 6GB |
| GPU Chip: | GP106-400-A1 (Pascal) |
| Streaming Multiprocessors: | 10 |
| Shader: | 1280 |
| Render Output Units: | 48 |
| Texture Units: | 80 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 1060 Gaming OC V2 6GB is equipped with 6 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 2.002 GHz and the speed is 8 Gbps. |
|
| Memory Size: | 6 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.002 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 192 GB/s |
| Memory Interface: | 192 bit |
Clock SpeedsThe base frequency of this graphics card is 1.531 GHz and the manufacturer specifies the maximum turbo clock as 1.708 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.531 GHz + 2 % |
| Boost Clock: | 1.708 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 1060 Gaming OC V2 6GB is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 130 W. |
|
| TDP: | 130 W+ 8 % |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce GTX 1060 Gaming OC V2 6GB are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce GTX 1060 Gaming OC V2 6GB. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce GTX 1060 Gaming OC V2 6GB it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce GTX 1060 Gaming OC V2 6GB can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | No |
| VP9: | Decode |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 1060 Gaming OC V2 6GB needs the space of 2 PCIe-Slots in a case. It is 275 mm long, 98 mm high and -- wide. |
|
| Length: | 275 mm |
| Height: | 98 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 1060 Gaming OC V2 6GB was released in Q4/2018 at a price of 249 $ (Reference). The graphics card manufactured in 16 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q4/2018 |
| Launch Price: | 249 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | N1060-8SDN-N5GNX |
| Documents: | -- |
1.531 GHz, 6 GB (130 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1060 6GB
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 1060 Gaming OC V2 6GB
6 GB GDDR5 |
||
