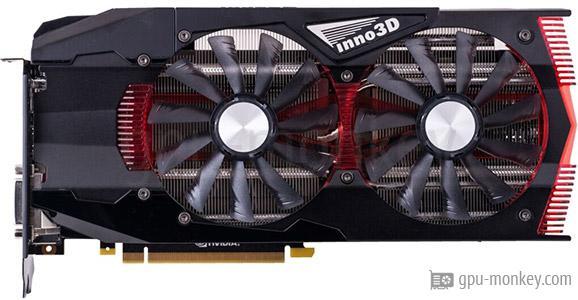

INNO3D GeForce GTX 1070 Gaming OC
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the INNO3D GeForce GTX 1070 Gaming OC. The graphics card is based on the NVIDIA GeForce GTX 1070 (Pascal) and has 8 GB GDDR5 graphics memory with a memory bandwidth of 256 GB/s. The INNO3D GeForce GTX 1070 Gaming OC has 15 execution units with 1920 shaders.
GPUThe INNO3D GeForce GTX 1070 Gaming OC has 1920 shaders and 15 execution units. The graphics card thus achieves a theoretical FP32 computing power of 6.70 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1070 |
| GPU Chip: | GP104-200-A1 (Pascal) |
| Streaming Multiprocessors: | 15 |
| Shader: | 1920 |
| Render Output Units: | 64 |
| Texture Units: | 120 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 1070 Gaming OC can use 8 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 256 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.002 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 256 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the INNO3D GeForce GTX 1070 Gaming OC is 1.556 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.556 GHz + 3 % |
| Boost Clock: | 1.746 GHz+ 4 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the INNO3D GeForce GTX 1070 Gaming OC is 200 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. |
|
| TDP: | 200 W+ 33 % |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe INNO3D GeForce GTX 1070 Gaming OC has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the INNO3D GeForce GTX 1070 Gaming OC. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce GTX 1070 Gaming OC has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the INNO3D GeForce GTX 1070 Gaming OC reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 1070 Gaming OC is 275 mm long and 118 mm high. With a width of --, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 275 mm |
| Height: | 118 mm |
| Width: | -- |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 1070 Gaming OC made in 16 nm was published in Q3/2016 for 379 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2016 |
| Launch Price: | 379 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | N1070-1SDN-P5DNX |
| Documents: | -- |
1.556 GHz, 8 GB (200 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 1070 Gaming OC
8 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
