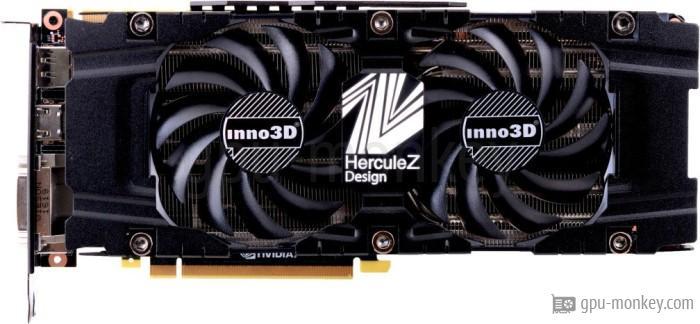

INNO3D GeForce GTX 1070 Twin X2 V2
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the INNO3D GeForce GTX 1070 Twin X2 V2 are listed on this page. The graphics card is based on the GP104-200-A1 (Pascal) graphics chip, which is manufactured with a structure width of 16 nm. The INNO3D GeForce GTX 1070 Twin X2 V2 can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe INNO3D GeForce GTX 1070 Twin X2 V2 has 15 execution units with 1920 shaders. This gives the graphics card a theoretical FP32 computing power of 6.46 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1070 |
| GPU Chip: | GP104-200-A1 (Pascal) |
| Streaming Multiprocessors: | 15 |
| Shader: | 1920 |
| Render Output Units: | 64 |
| Texture Units: | 120 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 1070 Twin X2 V2 is equipped with 8 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 2.002 GHz and the speed is 8 Gbps. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.002 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 256 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.506 GHz and the manufacturer specifies the maximum turbo clock as 1.683 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.506 GHz |
| Boost Clock: | 1.683 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 1070 Twin X2 V2 is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 150 W. |
|
| TDP: | 150 W |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce GTX 1070 Twin X2 V2 are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce GTX 1070 Twin X2 V2. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce GTX 1070 Twin X2 V2 it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce GTX 1070 Twin X2 V2 can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 1070 Twin X2 V2 needs the space of 2 PCIe-Slots in a case. It is 266 mm long, 111 mm high and -- wide. |
|
| Length: | 266 mm |
| Height: | 111 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 1070 Twin X2 V2 was released in Q3/2017 at a price of 379 $ (Reference). The graphics card manufactured in 16 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2017 |
| Launch Price: | 379 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | N1070-1SDV-P5DN |
| Documents: | -- |
1.506 GHz, 8 GB (150 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 1070 Twin X2 V2
8 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,159 entries
5,159 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
Crypto-Mining Vertcoin Hashrate
2,459 entries
2,459 entries
FP32 Performance
5,522 entries
5,522 entries
