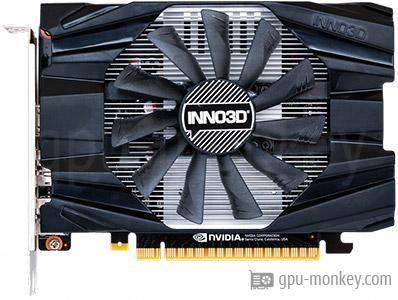

INNO3D GeForce GTX 1650 GDDR6 COMPACT
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the INNO3D GeForce GTX 1650 GDDR6 COMPACT. The graphics card is based on the NVIDIA GeForce GTX 1650 (GDDR6) (Turing) and has 4 GB GDDR6 graphics memory with a memory bandwidth of 192 GB/s. The INNO3D GeForce GTX 1650 GDDR6 COMPACT has 14 execution units with 896 shaders.
GPUThe INNO3D GeForce GTX 1650 GDDR6 COMPACT has 896 shaders and 14 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.85 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1650 (GDDR6) |
| GPU Chip: | TU117-300-A1 / TU106-125-A1 / TU116-150-KA-A1 (Turing) |
| Streaming Multiprocessors: | 14 |
| Shader: | 896 |
| Render Output Units: | 32 |
| Texture Units: | 56 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 1650 GDDR6 COMPACT can use 4 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 192 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.500 GHz |
| Memory Speed: | 12.0 Gbps |
| Memory bandwidth: | 192 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the INNO3D GeForce GTX 1650 GDDR6 COMPACT is 1.410 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.410 GHz |
| Boost Clock: | 1.590 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the INNO3D GeForce GTX 1650 GDDR6 COMPACT is 75 W. The graphics card is supplied with energy via the 1 x 6-Pin connector. |
|
| TDP: | 75 W |
| TDP (up): | -- |
| Tjunction max: | 92 °C |
| PCIe-Power: | 1 x 6-Pin |
Cooler & FansThe INNO3D GeForce GTX 1650 GDDR6 COMPACT has a total of 1 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 screens can be connected to the INNO3D GeForce GTX 1650 GDDR6 COMPACT. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 2x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce GTX 1650 GDDR6 COMPACT has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the INNO3D GeForce GTX 1650 GDDR6 COMPACT reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 1650 GDDR6 COMPACT is 160 mm long and 116 mm high. With a width of --, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 160 mm |
| Height: | 116 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 1650 GDDR6 COMPACT made in 12 nm was published in Q2/2020 for 149 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q2/2020 |
| Launch Price: | 149 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | N16501-04D6-1177VA19 |
| Documents: | data sheet |
1.410 GHz, 4 GB (75 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
|
NVIDIA GeForce GTX 1650 (GDDR6)
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR6)
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR6)
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR6)
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR6)
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR6)
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 1650 GDDR6 COMPACT
4 GB GDDR6 |
||
