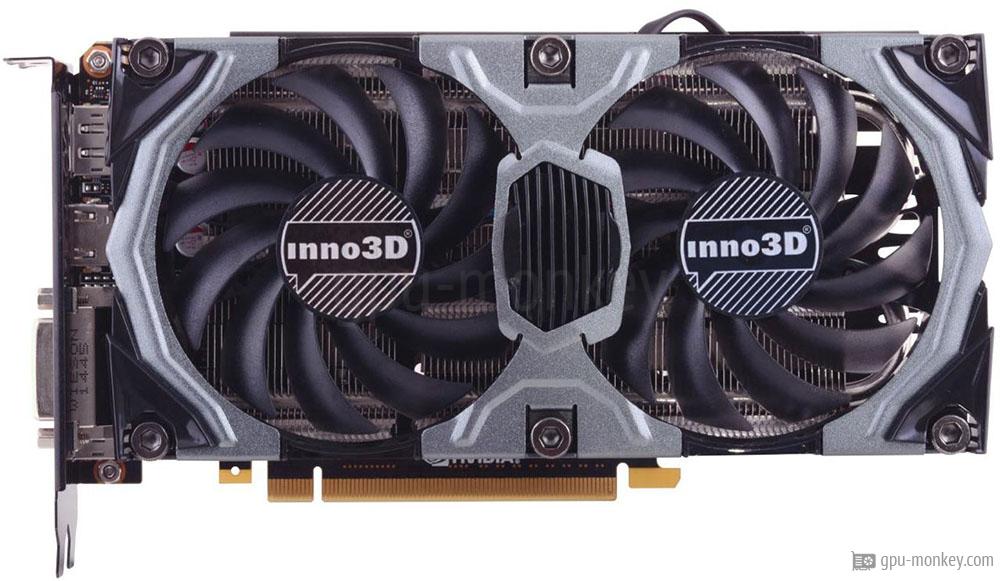

INNO3D GeForce GTX 960 HerculeZ X2 4GB
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the INNO3D GeForce GTX 960 HerculeZ X2 4GB are listed on this page. The graphics card is based on the GM206-300-A1 (Maxwell 2.0) graphics chip, which is manufactured with a structure width of 28 nm. The INNO3D GeForce GTX 960 HerculeZ X2 4GB can operate up to 4 screens with a maximum resolution of up to 4096x2160 become.
GPUThe INNO3D GeForce GTX 960 HerculeZ X2 4GB has 8 execution units with 1024 shaders. This gives the graphics card a theoretical FP32 computing power of 2.54 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 960 |
| GPU Chip: | GM206-300-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 8 |
| Shader: | 1024 |
| Render Output Units: | 32 |
| Texture Units: | 64 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 960 HerculeZ X2 4GB is equipped with 4 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 1.753 GHz and the speed is 7.01 Gbps. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base frequency of this graphics card is 1.178 GHz and the manufacturer specifies the maximum turbo clock as 1.241 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.178 GHz + 5 % |
| Boost Clock: | 1.241 GHz+ 5 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 960 HerculeZ X2 4GB is powered by 1 x 6-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 120 W. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce GTX 960 HerculeZ X2 4GB are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 85 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce GTX 960 HerculeZ X2 4GB. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce GTX 960 HerculeZ X2 4GB it is possible to operate a screen with a resolution of up to 4096x2160 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce GTX 960 HerculeZ X2 4GB can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 960 HerculeZ X2 4GB needs the space of 2 PCIe-Slots in a case. It is 215 mm long, 111 mm high and -- wide. |
|
| Length: | 215 mm |
| Height: | 111 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 960 HerculeZ X2 4GB was released in Q2/2015 at a price of 249 $. The graphics card manufactured in 28 nm is connected to the system via PCIe 3 x 16 lanes. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q2/2015 |
| Launch Price: | 249 $ |
| Structure size: | 28 nm |
| Part-no: | N960-3DDV-M5CNX |
| Documents: | -- |
1.178 GHz, 4 GB (120 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 960 HerculeZ X2 4GB
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 960 HerculeZ X2 4GB
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 960 HerculeZ X2 4GB
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 960 HerculeZ X2 4GB
4 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,127 entries
5,127 entries
Shadow of the Tomb Raider
5,128 entries
5,128 entries
Geekbench 6
5,129 entries
5,129 entries
FP32 Performance
5,500 entries
5,500 entries
