INNO3D GeForce GTX 960 HerculeZ X2 V2
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the INNO3D GeForce GTX 960 HerculeZ X2 V2. Up to 4 screens with a maximum resolution of up to 4096x2160 can be operated with this graphics card. The maximum turbo clock of the INNO3D GeForce GTX 960 HerculeZ X2 V2 is 1.241 GHz, so the graphics card achieves an FP32 computing power of 2.54 TFLOPS.
GPUThe INNO3D GeForce GTX 960 HerculeZ X2 V2 is equipped with 8 execution and 1024 shader units. With single precision, a theoretical FP32 computing power of 2.54 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 960 |
| GPU Chip: | GM206-300-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 8 |
| Shader: | 1024 |
| Render Output Units: | 32 |
| Texture Units: | 64 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 960 HerculeZ X2 V2 has a 128 bit wide memory interface, with which a memory bandwidth of 112 GB/s is achieved. In total, 2 GB GDDR5 graphics memory is available for the graphics card. |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the INNO3D GeForce GTX 960 HerculeZ X2 V2 with 1.178 GHz (base clock) or with 1.241 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.178 GHz + 5 % |
| Boost Clock: | 1.241 GHz+ 5 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 960 HerculeZ X2 V2 has 1 x 6-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 98 °C. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin |

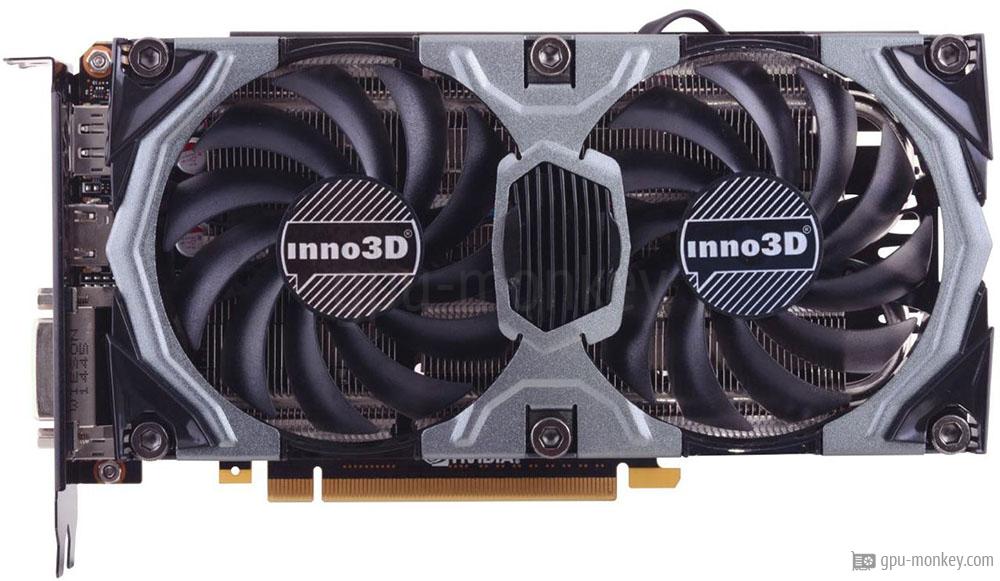

Cooler & FansThe INNO3D GeForce GTX 960 HerculeZ X2 V2 is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 85 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the INNO3D GeForce GTX 960 HerculeZ X2 V2, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce GTX 960 HerculeZ X2 V2 supports a maximum resolution of 4096x2160 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the INNO3D GeForce GTX 960 HerculeZ X2 V2 in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe dimensions of the INNO3D GeForce GTX 960 HerculeZ X2 V2 are 215 mm in length, 111 mm in height and -- in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 215 mm |
| Height: | 111 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 960 HerculeZ X2 V2 is manufactured in a structure width of 28 nm and has a PCIe 3 x 16 lanes interface. The graphics card was released in Q3/2015. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q3/2015 |
| Launch Price: | 229 $ |
| Structure size: | 28 nm |
| Part-no: | N96L-1DDV-E5CNX |
| Documents: | -- |
1.178 GHz, 2 GB (120 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 960 HerculeZ X2 V2
2 GB GDDR5 |
||
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 960 HerculeZ X2 V2
2 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,842 entries
4,842 entries
Shadow of the Tomb Raider
4,871 entries
4,871 entries
Geekbench 5
3,762 entries
3,762 entries
FP32 Performance
5,171 entries
5,171 entries
