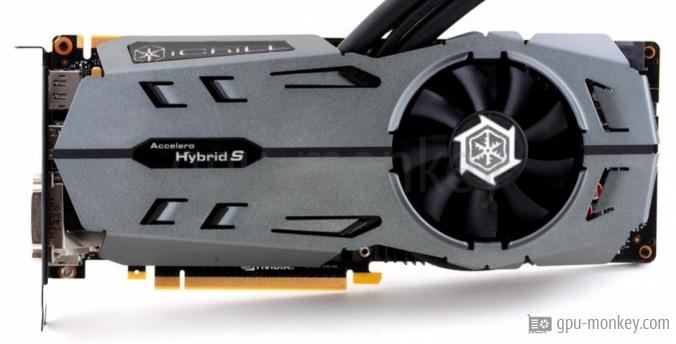

INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S are listed on this page. The graphics card is based on the GM204-400-A1 (Maxwell 2.0) graphics chip, which is manufactured with a structure width of 28 nm. The INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S can operate up to 4 screens with a maximum resolution of up to 4096x2160 become.
GPUThe INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S has 16 execution units with 2048 shaders. This gives the graphics card a theoretical FP32 computing power of 5.60 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 980 |
| GPU Chip: | GM204-400-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 16 |
| Shader: | 2048 |
| Render Output Units: | 64 |
| Texture Units: | 128 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S is equipped with 4 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 1.800 GHz and the speed is 7.2 Gbps. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.800 GHz |
| Memory Speed: | 7.2 Gbps |
| Memory bandwidth: | 230 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.266 GHz and the manufacturer specifies the maximum turbo clock as 1.367 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.266 GHz + 12 % |
| Boost Clock: | 1.367 GHz+ 12 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 165 W. |
|
| TDP: | 165 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S are cooled by a Hybrid cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 80 mm |
| Fan 2: | 1 x 120 mm |
| Cooler-Type: | Hybrid cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S it is possible to operate a screen with a resolution of up to 4096x2160 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S needs the space of 2 PCIe-Slots in a case. It is 266 mm long, 111 mm high and -- wide. |
|
| Length: | 266 mm |
| Height: | 111 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S was released in Q1/2015 at a price of 699 $. The graphics card manufactured in 28 nm is connected to the system via PCIe 3 x 16 lanes. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q1/2015 |
| Launch Price: | 699 $ |
| Structure size: | 28 nm |
| Part-no: | C98P-1SDN-M5DNX |
| Documents: | -- |
1.266 GHz, 4 GB (165 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 980 iCHILL Black Accelero Hybrid S
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
