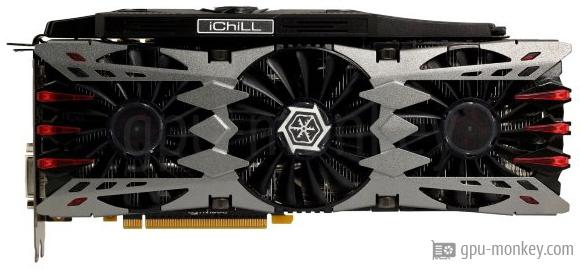

INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss are listed on this page. The graphics card is based on the GM204-400-A1 (Maxwell 2.0) graphics chip, which is manufactured with a structure width of 28 nm. The INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss can operate up to 4 screens with a maximum resolution of up to 4096x2160 become.
GPUThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss has 16 execution units with 2048 shaders. This gives the graphics card a theoretical FP32 computing power of 5.44 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 980 |
| GPU Chip: | GM204-400-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 16 |
| Shader: | 2048 |
| Render Output Units: | 64 |
| Texture Units: | 128 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss is equipped with 4 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 1.800 GHz and the speed is 7.2 Gbps. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.800 GHz |
| Memory Speed: | 7.2 Gbps |
| Memory bandwidth: | 230 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.228 GHz and the manufacturer specifies the maximum turbo clock as 1.329 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.228 GHz + 9 % |
| Boost Clock: | 1.329 GHz+ 9 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss is powered by 2 x 6-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 165 W. |
|
| TDP: | 165 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 2 x 6-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | 1 x 45 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss it is possible to operate a screen with a resolution of up to 4096x2160 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | Addressable LED |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss needs the space of 2 PCIe-Slots in a case. It is 300 mm long, 115 mm high and -- wide. |
|
| Length: | 300 mm |
| Height: | 115 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss was released in Q3/2014 at a price of 549 $. The graphics card manufactured in 28 nm is connected to the system via PCIe 3 x 16 lanes. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q3/2014 |
| Launch Price: | 549 $ |
| Structure size: | 28 nm |
| Part-no: | C98V-2SDN-M5DSX |
| Documents: | -- |
1.228 GHz, 4 GB (165 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,702 entries
5,702 entries
GTA 5 Benchmark
4,768 entries
4,768 entries
Shadow of the Tomb Raider
5,312 entries
5,312 entries
Geekbench 6
5,311 entries
5,311 entries
FP32 Performance
6,511 entries
6,511 entries
