The INNO3D GeForce RTX 2070 iCHILL FROSTBITE has 36 execution units with 2304 shaders. This gives the graphics card a theoretical FP32 computing power of 8.43 TFLOPS.
- GPU Chip
- TU106 (Turing)
- Streaming Multiprocessors
- 36
- Shader
- 2304
- Render Output Units
- 64
- Texture Units
- 144
- Raytracing Cores
- 36
The INNO3D GeForce RTX 2070 iCHILL FROSTBITE is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 448 GB/s
- Memory Interface
- 256 bit
The base frequency of this graphics card is 1.410 GHz and the manufacturer specifies the maximum turbo clock as 1.830 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.410 GHz
- Boost Clock
- 1.830 GHz+13 %
- Overclocking
- Yes
The INNO3D GeForce RTX 2070 iCHILL FROSTBITE is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 225 W.
- TDP
- 225 W+29 %
- Tjunction max
- 89 °C
- PCIe-Power
- 1 x 6-Pin, 1 x 8-Pin

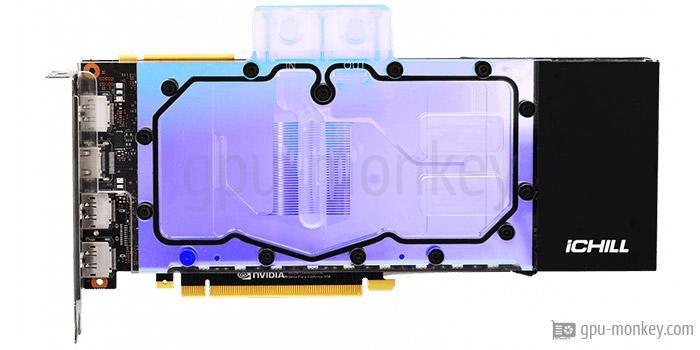

Graphics processor and graphics memory of the INNO3D GeForce RTX 2070 iCHILL FROSTBITE are cooled by a Water cooling.
- Cooler-Type
- Water cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 monitors can be operated with the INNO3D GeForce RTX 2070 iCHILL FROSTBITE.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4a
- USB-C
- 1
With the INNO3D GeForce RTX 2070 iCHILL FROSTBITE it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light
This area lists the video codecs that the INNO3D GeForce RTX 2070 iCHILL FROSTBITE can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The INNO3D GeForce RTX 2070 iCHILL FROSTBITE needs the space of 2 PCIe-Slots in a case. It is 265 mm long, 135 mm high and -- wide.
- Length
- 265 mm
- Height
- 135 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- No
The INNO3D GeForce RTX 2070 iCHILL FROSTBITE was released in Q3/2019 at a price of 499 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q3/2019
- Launch Price
- 499 $ (Reference)
- Structure size
- 12 nm
- Part-no
- C2070B-08D6X-1180FROS
