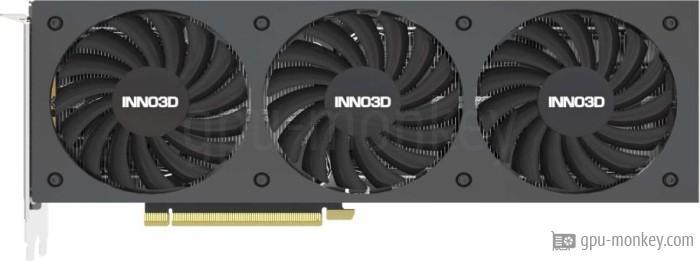

INNO3D GeForce RTX 3070 Ti X3 OC
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the INNO3D GeForce RTX 3070 Ti X3 OC. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the INNO3D GeForce RTX 3070 Ti X3 OC is 1.785 GHz, so the graphics card achieves an FP32 computing power of 21.93 TFLOPS.
GPUThe INNO3D GeForce RTX 3070 Ti X3 OC is equipped with 48 execution and 6144 shader units. With single precision, a theoretical FP32 computing power of 21.93 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 3070 Ti |
| GPU Chip: | GA104-400-A1 (Ampere) |
| Streaming Multiprocessors: | 48 |
| Shader: | 6144 |
| Render Output Units: | 96 |
| Texture Units: | 192 |
| Raytracing Cores: | 48 |
MemoryThe INNO3D GeForce RTX 3070 Ti X3 OC has a 256 bit wide memory interface, with which a memory bandwidth of 608 GB/s is achieved. In total, 8 GB GDDR6X graphics memory is available for the graphics card. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.188 GHz |
| Memory Speed: | 19.0 Gbps |
| Memory bandwidth: | 608 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the INNO3D GeForce RTX 3070 Ti X3 OC with 1.580 GHz (base clock) or with 1.785 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.580 GHz |
| Boost Clock: | 1.785 GHz + 1 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce RTX 3070 Ti X3 OC has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 93 °C. |
|
| TDP: | 290 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe INNO3D GeForce RTX 3070 Ti X3 OC is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the INNO3D GeForce RTX 3070 Ti X3 OC, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce RTX 3070 Ti X3 OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the INNO3D GeForce RTX 3070 Ti X3 OC in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe dimensions of the INNO3D GeForce RTX 3070 Ti X3 OC are 300 mm in length, 112 mm in height and -- in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 300 mm |
| Height: | 112 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce RTX 3070 Ti X3 OC is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q2/2021. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2021 |
| Launch Price: | 599 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | N307T3-086XX-1820VA45 |
| Documents: | data sheet |
1.580 GHz, 8 GB (290 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3070 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce RTX 3070 Ti X3 OC
8 GB GDDR6X |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
