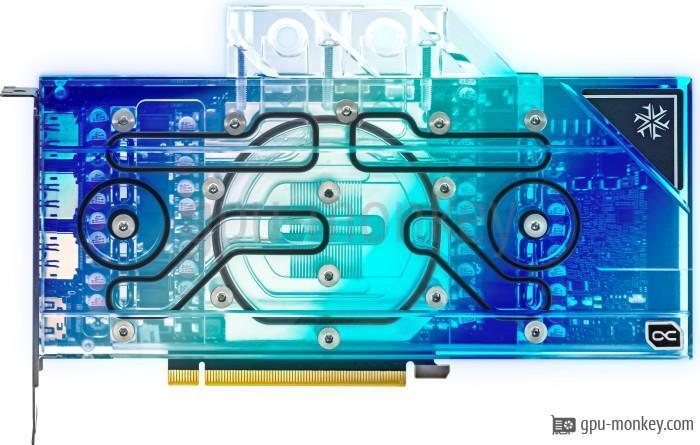

GPUThe INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR has 70 execution units with 8960 shaders. This gives the graphics card a theoretical FP32 computing power of 31.45 TFLOPS. |
|
Based on: | NVIDIA GeForce RTX 3080 12GB |
GPU Chip: | GA102 (Ampere) |
Streaming Multiprocessors: | 70 |
Shader: | 8960 |
Render Output Units: | 112 |
Texture Units: | 280 |
Raytracing Cores: | 70 |
MemoryThe INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR is equipped with 12 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps. |
|
Memory Size: | 12 GB |
Memory Type: | GDDR6X |
Memory Clock: | 1.188 GHz |
Memory Speed: | 19.0 Gbps |
Memory bandwidth: | 912 GB/s |
Memory Interface: | 384 bit |
Clock SpeedsThe base frequency of this graphics card is 1.260 GHz and the manufacturer specifies the maximum turbo clock as 1.755 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
Base Clock: | 1.260 GHz |
Boost Clock: | 1.755 GHz+ 3 % |
Avg (Game) Clock: | |
Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 350 W. |
|
TDP: | 350 W |
TDP (up): | -- |
Tjunction max: | 93 °C |
PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR are cooled by a Water cooling. |
|
Fan-Type: | -- |
Fan 1: | -- |
Fan 2: | -- |
Cooler-Type: | Water cooling |
Noise (Idle): | 0 dB / Silent |
Noise (Load): | 0 dB |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR. |
|
Max. Displays: | 4 |
HDCP-Version: | 2.3 |
HDMI Ports: | 1x HDMI v2.1 |
DP Ports: | 3x DP v1.4a |
DVI Ports: | -- |
VGA Ports: | -- |
USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
Max. resolution: | 7680x4320 |
DirectX: | 12_2 (Ultimate) |
Raytracing: | Yes |
DLSS / FSR: | Yes |
LED: | Addressable LED |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
h264: | Decode / Encode |
h265 / HEVC: | Decode / Encode |
VP8: | Decode |
VP9: | Decode |
AV1: | Decode |
DimensionsThe INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR needs the space of 2 PCIe-Slots in a case. It is 226 mm long, 135 mm high and -- wide. |
|
Length: | 226 mm |
Height: | 135 mm |
Width: | -- |
Width (Slots): | 2 PCIe-Slots |
Weight: | -- |
Additional dataThe INNO3D GeForce RTX 3080 12GB iCHILL Frostbite LHR was released in Q1/2022 at a price of 699 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
GPU Interface: | PCIe 4.0 x 16 |
Release date: | Q1/2022 |
Launch Price: | 699 $ (Reference) |
Structure size: | 8 nm |
Part-no: | C3080B-126XX-1810FBH |
Documents: | data sheet |
