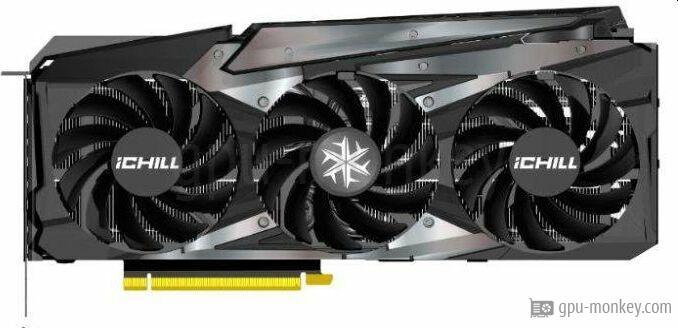

INNO3D GeForce RTX 3080 iCHILL X3 LHR
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the INNO3D GeForce RTX 3080 iCHILL X3 LHR are listed on this page. The graphics card is based on the GA102-202-K1-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The INNO3D GeForce RTX 3080 iCHILL X3 LHR can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe INNO3D GeForce RTX 3080 iCHILL X3 LHR has 68 execution units with 8704 shaders. This gives the graphics card a theoretical FP32 computing power of 30.81 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3080 LHR |
| GPU Chip: | GA102-202-K1-A1 (Ampere) |
| Streaming Multiprocessors: | 68 |
| Shader: | 8704 |
| Render Output Units: | 96 |
| Texture Units: | 272 |
| Raytracing Cores: | 68 |
MemoryThe INNO3D GeForce RTX 3080 iCHILL X3 LHR is equipped with 10 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps. |
|
| Memory Size: | 10 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.188 GHz |
| Memory Speed: | 19.0 Gbps |
| Memory bandwidth: | 760 GB/s |
| Memory Interface: | 320 bit |
Clock SpeedsThe base frequency of this graphics card is 1.440 GHz and the manufacturer specifies the maximum turbo clock as 1.770 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.440 GHz |
| Boost Clock: | 1.770 GHz + 4 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce RTX 3080 iCHILL X3 LHR is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 340 W. |
|
| TDP: | 340 W+ 6 % |
| TDP (up): | 370 W |
| Tjunction max: | 93 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the INNO3D GeForce RTX 3080 iCHILL X3 LHR are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 42-44 dB |
ConnectivityUp to 4 monitors can be operated with the INNO3D GeForce RTX 3080 iCHILL X3 LHR. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the INNO3D GeForce RTX 3080 iCHILL X3 LHR it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light |
Supported Video CodecsThis area lists the video codecs that the INNO3D GeForce RTX 3080 iCHILL X3 LHR can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe INNO3D GeForce RTX 3080 iCHILL X3 LHR needs the space of 3 PCIe-Slots in a case. It is 300 mm long, 135 mm high and -- wide. |
|
| Length: | 300 mm |
| Height: | 135 mm |
| Width: | -- |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce RTX 3080 iCHILL X3 LHR was released in Q2/2021 at a price of 899 $. The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2021 |
| Launch Price: | 899 $ |
| Structure size: | 8 nm |
| Part-no: | C30803-106XX-1810VA37H |
| Documents: | data sheet |
1.440 GHz, 10 GB (340 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 LHR
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce RTX 3080 iCHILL X3 LHR
10 GB GDDR6X |
||
