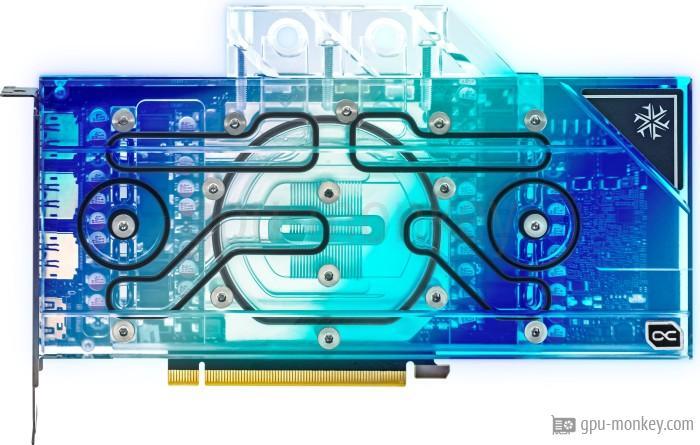

The INNO3D GeForce RTX 3080 Ti iCHILL Frostbite has 10240 shaders and 80 execution units. The graphics card thus achieves a theoretical FP32 computing power of 35.02 TFLOPS.
- GPU Chip
- GA102-225-A1 (Ampere)
- Streaming Multiprocessors
- 80
- Shader
- 10240
- Render Output Units
- 112
- Texture Units
- 320
- Raytracing Cores
- 80
The INNO3D GeForce RTX 3080 Ti iCHILL Frostbite can use 12 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 912 GB/s on a 384 bit wide memory interface.
- Memory Size
- 12 GB
- Memory Type
- GDDR6X
- Memory Clock
- 1.188 GHz
- Memory Speed
- 19.0 Gbps
- Memory bandwidth
- 912 GB/s
- Memory Interface
- 384 bit
The base clock frequency of the INNO3D GeForce RTX 3080 Ti iCHILL Frostbite is 1.365 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
- Base Clock
- 1.365 GHz
- Boost Clock
- 1.710 GHz+3 %
- Overclocking
- Yes
The TDP (Thermal Design Power) of the INNO3D GeForce RTX 3080 Ti iCHILL Frostbite is 350 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.
- TDP
- 350 W
- Tjunction max
- 93 °C
- PCIe-Power
- 2 x 8-Pin
The INNO3D GeForce RTX 3080 Ti iCHILL Frostbite has a total of 0 -- fans to cool the graphics processor and graphics memory.
- Cooler-Type
- Water cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 screens can be connected to the INNO3D GeForce RTX 3080 Ti iCHILL Frostbite.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1
- DisplayPort
- 3x DP 1.4a
The INNO3D GeForce RTX 3080 Ti iCHILL Frostbite has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light
The video codecs accelerated in hardware by the INNO3D GeForce RTX 3080 Ti iCHILL Frostbite reduce the processor load and ensure lower energy consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The INNO3D GeForce RTX 3080 Ti iCHILL Frostbite is 226 mm long and 135 mm high. With a width of 42 mm, the graphics card requires 2 PCIe-Slots in the case.
- Length
- 226 mm
- Height
- 135 mm
- Width
- 42 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- No
The INNO3D GeForce RTX 3080 Ti iCHILL Frostbite made in 8 nm was published in Q2/2021 for 1,199 $.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q2/2021
- Launch Price
- 1,199 $ (Reference)
- Structure size
- 8 nm
- Part-no
- C308T-126XX-1810FB
