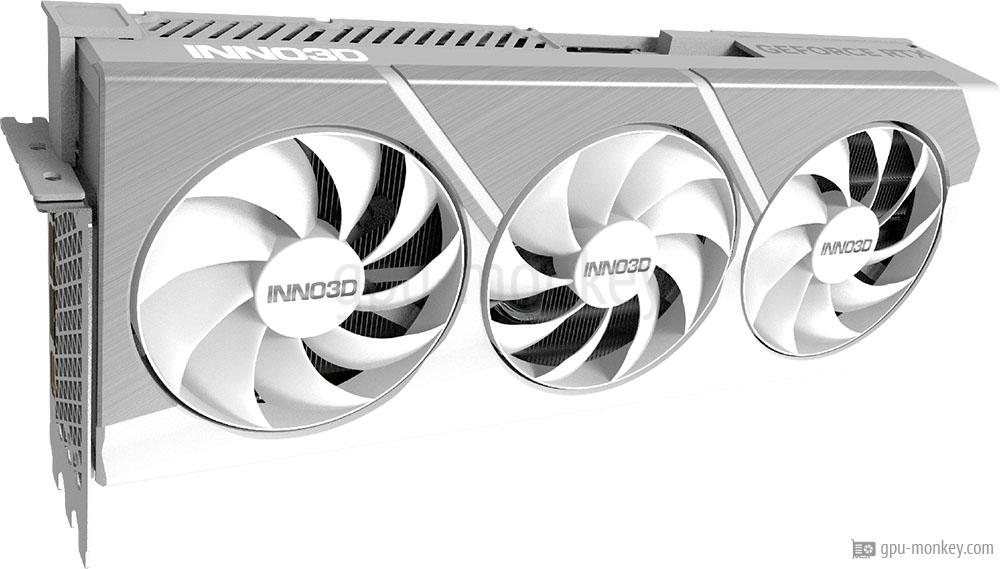

INNO3D GeForce RTX 4090 X3 OC WHITE
Benchmark and Specs


Last updated:

Benchmark and Specs

Here you will find all technical data as well as various benchmarks of the INNO3D GeForce RTX 4090 X3 OC WHITE. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the INNO3D GeForce RTX 4090 X3 OC WHITE is 2.550 GHz, so the graphics card achieves an FP32 computing power of 83.56 TFLOPS.

GPU

The INNO3D GeForce RTX 4090 X3 OC WHITE is equipped with 128 execution and 16384 shader units. With single precision, a theoretical FP32 computing power of 83.56 TFLOPS is achieved.

Based on: NVIDIA GeForce RTX 4090
GPU Chip: AD102-300-A1 (Ada Lovelace)
Streaming Multiprocessors: 128
Shader: 16384
Render Output Units: 176
Texture Units: 512
Raytracing Cores: 128

Memory

The INNO3D GeForce RTX 4090 X3 OC WHITE has a 384 bit wide memory interface, with which a memory bandwidth of 1008 GB/s is achieved. In total, 24 GB GDDR6X graphics memory is available for the graphics card.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21.0 Gbps
Memory bandwidth: 1008 GB/s
Memory Interface: 384 bit

Clock Speeds

The manufacturer specifies the memory clock of the INNO3D GeForce RTX 4090 X3 OC WHITE with 2.235 GHz (base clock) or with 2.550 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock: 2.235 GHz
Boost Clock: 2.550 GHzDeviation vs GPU group+ 1 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The INNO3D GeForce RTX 4090 X3 OC WHITE has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 90 °C.

TDP: 450 W (Reference)
TDP (up): --
Tjunction max: 90 °C
PCIe-Power: 1 x 16-Pin

Cooler & Fans

The INNO3D GeForce RTX 4090 X3 OC WHITE is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 98 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the INNO3D GeForce RTX 4090 X3 OC WHITE, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The INNO3D GeForce RTX 4090 X3 OC WHITE supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

Here is a list of which video codecs can be decoded / encoded by the INNO3D GeForce RTX 4090 X3 OC WHITE in hardware in order to minimize the processor load.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The dimensions of the INNO3D GeForce RTX 4090 X3 OC WHITE are 336 mm in length, 145 mm in height and 60 mm in width. Thus 3 PCIe-Slots are needed in a case.

Length: 336 mm
Height: 145 mm
Width: 60 mm
Width (Slots): 3 PCIe-Slots
Weight: --
SFF-Ready: No

Additional data

The INNO3D GeForce RTX 4090 X3 OC WHITE is manufactured in a structure width of 5 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q2/2023.

GPU Interface: PCIe 4.0 x 16
Release date: Q2/2023
Launch Price: 1,599 $ (Reference)
Structure size: 5 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
19509
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
19627

Port Royal (Raytracing)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
25914
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
26070

Speed Way Graphics Score (Raytracing)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
10037
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
10098

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
94 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
94 fps (avg)

2560x1440 (1440p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
187 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
185 fps (avg)

1920x1080 (1080p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
197 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
195 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
81 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
80 fps (avg)

2560x1440 (1440p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
144 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
142 fps (avg)

1920x1080 (1080p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
186 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
184 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
187 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
186 fps (avg)

2560x1440 (1440p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
202 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
203 fps (avg)

1920x1080 (1080p)

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
202 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
213 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
326245
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
349582

Geekbench 6 - Vulkan

INNO3D GeForce RTX 4090 X3 OC WHITE INNO3D GeForce RTX 4090 X3 OC WHITE
24 GB GDDR6X
260532
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
197830

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
