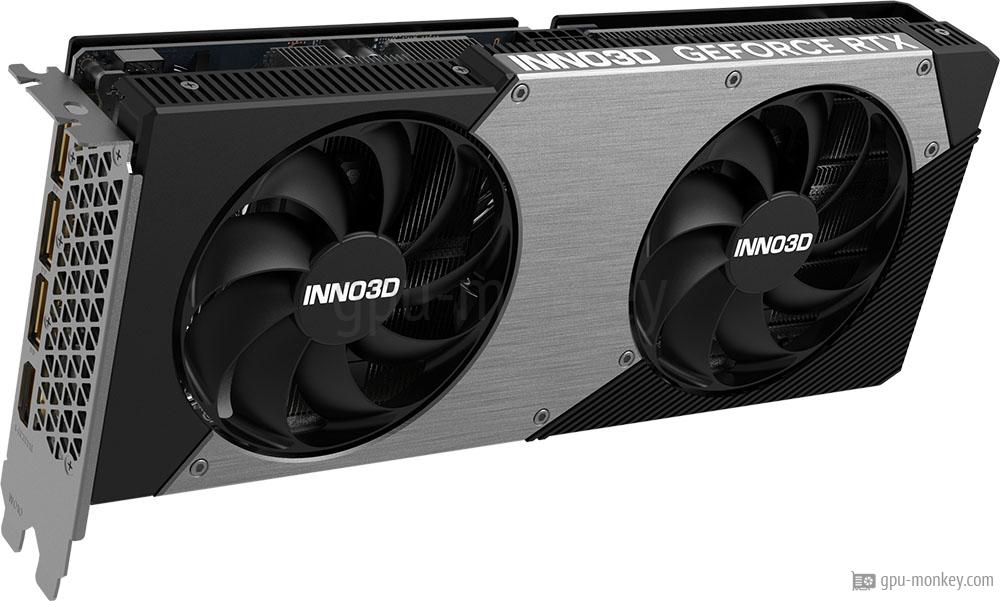

INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC Benchmark and Specs

The INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC has 36 execution units with 4608 shaders. This gives the graphics card a theoretical FP32 computing power of 23.98 TFLOPS.

Based on

NVIDIA GeForce RTX 5060 TI 8GB

GPU Chip

GB206 (Blackwell)

Streaming Multiprocessors

36

Shader

4608

Render Output Units

48

Texture Units

144

Raytracing Cores

36

The INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC is equipped with 8 GB graphics memory of the type GDDR7. The memory clock of the graphics card is 1.750 GHz and the speed is 28 Gbps.

Memory Size

8 GB

Memory Type

GDDR7

Memory Clock

1.750 GHz

Memory Speed

28.0 Gbps

Memory bandwidth

448 GB/s

Memory Interface

128 bit

The base frequency of this graphics card is 2.407 GHz and the manufacturer specifies the maximum turbo clock as 2.602 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock

2.407 GHz

Boost Clock

2.602 GHz+1 %

Overclocking

Yes

The INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 180 W.

TDP

180 W (Reference)

Tjunction max

87 °C

PCIe-Power

1 x 8-Pin

Graphics processor and graphics memory of the INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC are cooled by a Air cooling.

Fan-Type

Axial

Fan 1

2 x 88 mm

Cooler-Type

Air cooling

Noise (Idle)

0 dB / Silent

Up to 4 monitors can be operated with the INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC.

Max. Displays

4

HDCP

2.3

HDMI

1x HDMI 2.1b

DisplayPort

3x DP 2.1b

With the INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution

7680x4320

DirectX

12_2 (Ultimate)

Raytracing

Yes

DLSS / FSR

Yes

LED

No LED lighting

This area lists the video codecs that the INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264

Decode / Encode

h265 / HEVC

Decode / Encode

VP8

Decode / Encode

VP9

Decode / Encode

AV1

Decode / Encode

The INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC needs the space of 2 PCIe-Slots in a case. It is 250 mm long, 116 mm high and 41 mm wide.

Length

250 mm

Height

116 mm

Width

41 mm

Width (Slots)

2 PCIe-Slots

SFF-Ready

No

The INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC was released in Q2/2025 at a price of 379 $. The graphics card manufactured in 4 nm is connected to the system via PCIe 5 x 8 lanes.

GPU Interface

PCIe 5 x 8

Release date

Q2/2025

Launch Price

379 $ (Reference)

Structure size

4 nm

Part-no

N506T2-08D7X-193075N

Documents

data sheet
