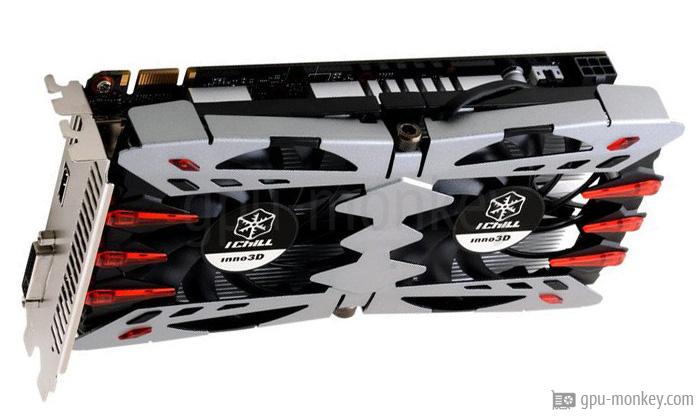

INNO3D iCHILL GeForce GTX 950 X2 Air Boss Benchmark and Specs

The INNO3D iCHILL GeForce GTX 950 X2 Air Boss has 768 shaders and 6 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.05 TFLOPS.

Based on

NVIDIA GeForce GTX 950

GPU Chip

GM206-250-A1 (Maxwell 2.0)

Streaming Multiprocessors

6

Shader

768

Render Output Units

32

Texture Units

48

The INNO3D iCHILL GeForce GTX 950 X2 Air Boss can use 2 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 109 GB/s on a 128 bit wide memory interface.

Memory Size

2 GB

Memory Type

GDDR5

Memory Clock

1.700 GHz

Memory Speed

6.8 Gbps

Memory bandwidth

109 GB/s

Memory Interface

128 bit

The base clock frequency of the INNO3D iCHILL GeForce GTX 950 X2 Air Boss is 1.178 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock

1.178 GHz+15 %

Boost Clock

1.329 GHz+12 %

Overclocking

Yes

The TDP (Thermal Design Power) of the INNO3D iCHILL GeForce GTX 950 X2 Air Boss is 90 W. The graphics card is supplied with energy via the 1 x 6-Pin connector.

TDP

90 W

Tjunction max

95 °C

PCIe-Power

1 x 6-Pin

The INNO3D iCHILL GeForce GTX 950 X2 Air Boss has a total of 2 Axial fans to cool the graphics processor and graphics memory.

Fan-Type

Axial

Fan 1

2 x 90 mm

Cooler-Type

Air cooling

Noise (Idle)

0 dB / Silent

Up to 4 screens can be connected to the INNO3D iCHILL GeForce GTX 950 X2 Air Boss.

Max. Displays

4

HDCP

2.2

HDMI

1x HDMI 2.0

DisplayPort

1x DP 1.2

DVI

1

The INNO3D iCHILL GeForce GTX 950 X2 Air Boss has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard.

Max. resolution

4096x2160

DirectX

12_1

Raytracing

No

DLSS / FSR

No

LED

No LED lighting

The video codecs accelerated in hardware by the INNO3D iCHILL GeForce GTX 950 X2 Air Boss reduce the processor load and ensure lower energy consumption.

h264

Decode / Encode

h265 / HEVC

No

VP8

Decode

VP9

No

AV1

No

The INNO3D iCHILL GeForce GTX 950 X2 Air Boss is 205 mm long and 111 mm high. With a width of --, the graphics card requires 2 PCIe-Slots in the case.

Length

205 mm

Height

111 mm

Width (Slots)

2 PCIe-Slots

SFF-Ready

No

The INNO3D iCHILL GeForce GTX 950 X2 Air Boss made in 28 nm was published in Q3/2015 for 159 $.

GPU Interface

PCIe 3 x 16

Release date

Q3/2015

Launch Price

159 $

Structure size

28 nm

Part-no

C950-1SDV-E5CMX
