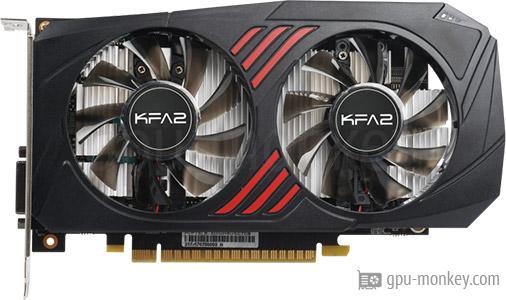

KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version. The graphics card is based on the NVIDIA GeForce GTX 1060 6GB (GDDR5X) (Pascal) and has 6 GB GDDR5X graphics memory with a memory bandwidth of 192 GB/s. The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version has 10 execution units with 1280 shaders.

GPU

The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version has 1280 shaders and 10 execution units. The graphics card thus achieves a theoretical FP32 computing power of 4.44 TFLOPS.

Based on: NVIDIA GeForce GTX 1060 6GB (GDDR5X)
GPU Chip: GP104-150-KA-A1 (Pascal)
Streaming Multiprocessors: 10
Shader: 1280
Render Output Units: 48
Texture Units: 80
Raytracing Cores: 0

Memory

The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version can use 6 GB graphics memory of the type GDDR5X. The graphics card thus achieves a memory bandwidth of 192 GB/s on a 192 bit wide memory interface.

Memory Size: 6 GB
Memory Type: GDDR5X
Memory Clock: 1.001 GHz
Memory Speed: 8.0 Gbps
Memory bandwidth: 192 GB/s
Memory Interface: 192 bit

Clock Speeds

The base clock frequency of the KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version is 1.518 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.518 GHzDeviation vs GPU group+ 1 %
Boost Clock: 1.733 GHzDeviation vs GPU group+ 1 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version is 120 W. The graphics card is supplied with energy via the 1 x 6-Pin connector.

TDP: 120 W
TDP (up): --
Tjunction max: 94 °C
PCIe-Power: 1 x 6-Pin

Cooler & Fans

The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version has a total of 2 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 2 x 80 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): --
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: 1x DP v1.4
DVI Ports: 1
VGA Ports: --
USB-C Ports: --

Featureset

The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard.

Max. resolution: 7680x4320
DirectX: 12_1
Raytracing: No
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: No
VP9: Decode
AV1: No

Dimensions

The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version is 228 mm long and 132 mm high. With a width of 42 mm, the graphics card requires 2 PCIe-Slots in the case.

Length: 228 mm
Height: 132 mm
Width: 42 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The KFA2 GeForce GTX 1060 OC 6GB GDDR5X REDBLACK version made in 16 nm was published in Q3/2018 for 249 $ (Reference).

GPU Interface: PCIe 3.0 x 16
Release date: Q3/2018
Launch Price: 249 $ (Reference)
Structure size: 16 nm
Part-no: 60NRJ7DSX1PK
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
