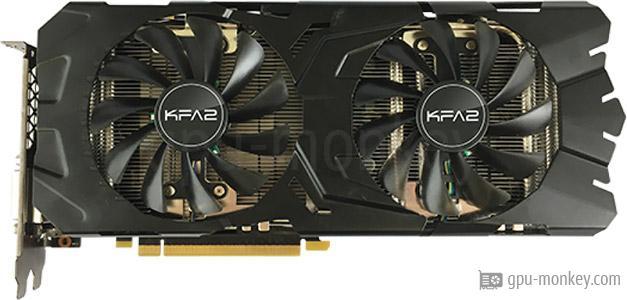

KFA2 GeForce GTX 1070 EX OC
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the KFA2 GeForce GTX 1070 EX OC are listed on this page. The graphics card is based on the GP104-200-A1 (Pascal) graphics chip, which is manufactured with a structure width of 16 nm. The KFA2 GeForce GTX 1070 EX OC can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe KFA2 GeForce GTX 1070 EX OC has 15 execution units with 1920 shaders. This gives the graphics card a theoretical FP32 computing power of 6.85 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1070 |
| GPU Chip: | GP104-200-A1 (Pascal) |
| Streaming Multiprocessors: | 15 |
| Shader: | 1920 |
| Render Output Units: | 64 |
| Texture Units: | 120 |
| Raytracing Cores: | 0 |
MemoryThe KFA2 GeForce GTX 1070 EX OC is equipped with 8 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 2.002 GHz and the speed is 8 Gbps. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.002 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 256 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.594 GHz and the manufacturer specifies the maximum turbo clock as 1.784 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.594 GHz + 6 % |
| Boost Clock: | 1.784 GHz+ 6 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe KFA2 GeForce GTX 1070 EX OC is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 150 W. |
|
| TDP: | 150 W |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the KFA2 GeForce GTX 1070 EX OC are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the KFA2 GeForce GTX 1070 EX OC. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the KFA2 GeForce GTX 1070 EX OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the KFA2 GeForce GTX 1070 EX OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe KFA2 GeForce GTX 1070 EX OC needs the space of 2 PCIe-Slots in a case. It is 282 mm long, 128 mm high and 43 mm wide. |
|
| Length: | 282 mm |
| Height: | 128 mm |
| Width: | 43 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe KFA2 GeForce GTX 1070 EX OC was released in Q2/2016 at a price of 379 $ (Reference). The graphics card manufactured in 16 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q2/2016 |
| Launch Price: | 379 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | 70NSH6DHL4EK |
| Documents: | data sheet |
1.594 GHz, 8 GB (150 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Port Royal (Raytracing)
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
KFA2 GeForce GTX 1070 EX OC
8 GB GDDR5 |
||
