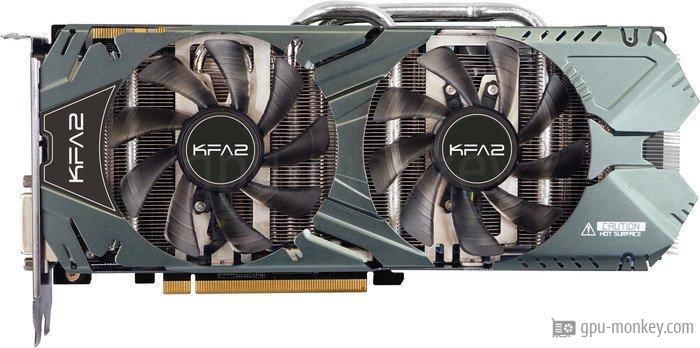

KFA2 GeForce GTX 970 EXOC Black Edition
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the KFA2 GeForce GTX 970 EXOC Black Edition. The graphics card is based on the NVIDIA GeForce GTX 970 (Maxwell 2.0) and has 4 GB GDDR5 graphics memory with a memory bandwidth of 224 GB/s. The KFA2 GeForce GTX 970 EXOC Black Edition has 13 execution units with 1664 shaders.
GPUThe KFA2 GeForce GTX 970 EXOC Black Edition has 1664 shaders and 13 execution units. The graphics card thus achieves a theoretical FP32 computing power of 4.38 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 970 |
| GPU Chip: | GM204-200-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 13 |
| Shader: | 1664 |
| Render Output Units: | 56 |
| Texture Units: | 104 |
| Raytracing Cores: | 0 |
MemoryThe KFA2 GeForce GTX 970 EXOC Black Edition can use 4 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 224 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 224 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the KFA2 GeForce GTX 970 EXOC Black Edition is 1.164 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.164 GHz + 11 % |
| Boost Clock: | 1.317 GHz+ 12 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the KFA2 GeForce GTX 970 EXOC Black Edition is 145 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector. |
|
| TDP: | 145 W -2 % |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe KFA2 GeForce GTX 970 EXOC Black Edition has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the KFA2 GeForce GTX 970 EXOC Black Edition. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 1x DP v1.2 |
| DVI Ports: | 2 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe KFA2 GeForce GTX 970 EXOC Black Edition has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the KFA2 GeForce GTX 970 EXOC Black Edition reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe KFA2 GeForce GTX 970 EXOC Black Edition is 271 mm long and 124 mm high. With a width of 41 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 271 mm |
| Height: | 124 mm |
| Width: | 41 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe KFA2 GeForce GTX 970 EXOC Black Edition made in 28 nm was published in Q4/2014 for 329 $. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q4/2014 |
| Launch Price: | 329 $ |
| Structure size: | 28 nm |
| Part-no: | 97NQH6DNB4TX |
| Documents: | data sheet |
1.164 GHz, 4 GB (145 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
KFA2 GeForce GTX 970 EXOC Black Edition
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 970
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
KFA2 GeForce GTX 970 EXOC Black Edition
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 970
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
KFA2 GeForce GTX 970 EXOC Black Edition
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 970
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
KFA2 GeForce GTX 970 EXOC Black Edition
4 GB GDDR5 |
||
