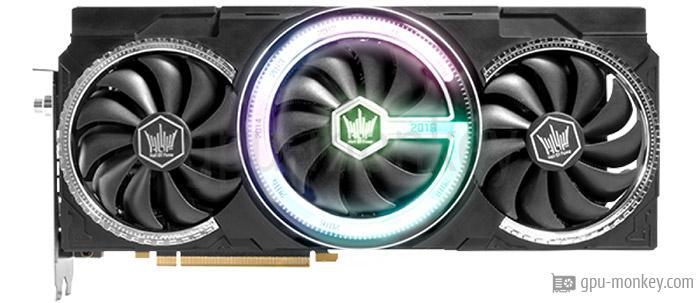

The KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition has 40 execution units with 2560 shaders. This gives the graphics card a theoretical FP32 computing power of 9.75 TFLOPS.
- GPU Chip
- TU104 (Turing)
- Streaming Multiprocessors
- 40
- Shader
- 2560
- Render Output Units
- 64
- Texture Units
- 160
- Raytracing Cores
- 40
The KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.938 GHz and the speed is 15.5 Gbps.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.938 GHz
- Memory Speed
- 15.5 Gbps
- Memory bandwidth
- 496 GB/s
- Memory Interface
- 256 bit
The base frequency of this graphics card is 1.605 GHz and the manufacturer specifies the maximum turbo clock as 1.905 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.605 GHz
- Boost Clock
- 1.905 GHz+8 %
- Overclocking
- Yes
The KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 215 W.
- TDP
- 215 W
- Tjunction max
- 88 °C
- PCIe-Power
- 2 x 8-Pin
Graphics processor and graphics memory of the KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 3 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 monitors can be operated with the KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4a
- USB-C
- 1
With the KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- Addressable LED
This area lists the video codecs that the KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition needs the space of 3 PCIe-Slots in a case. It is 320 mm long, 152 mm high and 60 mm wide.
- Length
- 320 mm
- Height
- 152 mm
- Width
- 60 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The KFA2 GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition was released in Q3/2019 at a price of 499 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q3/2019
- Launch Price
- 499 $ (Reference)
- Structure size
- 12 nm
- Part-no
- 27ISL6UC53HT
