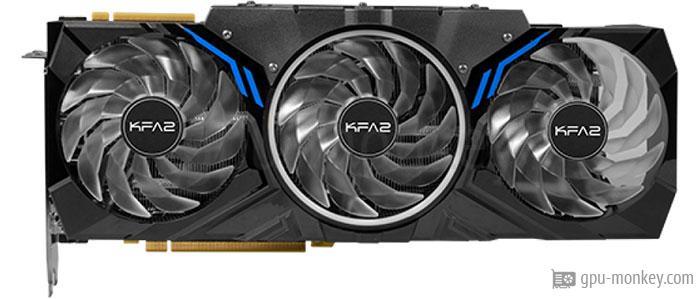

KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the KFA2 GeForce RTX 2080 SUPER Work The Frames Edition. The graphics card is based on the NVIDIA GeForce RTX 2080 SUPER (Turing) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 496 GB/s. The KFA2 GeForce RTX 2080 SUPER Work The Frames Edition has 48 execution units with 3072 shaders.
GPUThe KFA2 GeForce RTX 2080 SUPER Work The Frames Edition has 3072 shaders and 48 execution units. The graphics card thus achieves a theoretical FP32 computing power of 11.43 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 2080 SUPER |
| GPU Chip: | TU104 (Turing) |
| Streaming Multiprocessors: | 48 |
| Shader: | 3072 |
| Render Output Units: | 64 |
| Texture Units: | 192 |
| Raytracing Cores: | 48 |
MemoryThe KFA2 GeForce RTX 2080 SUPER Work The Frames Edition can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 496 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.938 GHz |
| Memory Speed: | 15.5 Gbps |
| Memory bandwidth: | 496 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the KFA2 GeForce RTX 2080 SUPER Work The Frames Edition is 1.650 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.650 GHz |
| Boost Clock: | 1.860 GHz + 2 % |
| Avg (Game) Clock: | 1.845 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the KFA2 GeForce RTX 2080 SUPER Work The Frames Edition is 250 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector. |
|
| TDP: | 250 W |
| TDP (up): | -- |
| Tjunction max: | 89 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe KFA2 GeForce RTX 2080 SUPER Work The Frames Edition has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the KFA2 GeForce RTX 2080 SUPER Work The Frames Edition. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe KFA2 GeForce RTX 2080 SUPER Work The Frames Edition has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThe video codecs accelerated in hardware by the KFA2 GeForce RTX 2080 SUPER Work The Frames Edition reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe KFA2 GeForce RTX 2080 SUPER Work The Frames Edition is 328 mm long and 150 mm high. With a width of 53 mm, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 328 mm |
| Height: | 150 mm |
| Width: | 53 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe KFA2 GeForce RTX 2080 SUPER Work The Frames Edition made in 12 nm was published in Q3/2019 for 699 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2019 |
| Launch Price: | 699 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | 28ISL6MD24WF |
| Documents: | data sheet |
1.650 GHz, 8 GB (250 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Port Royal (Raytracing)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
KFA2 GeForce RTX 2080 SUPER Work The Frames Edition
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
