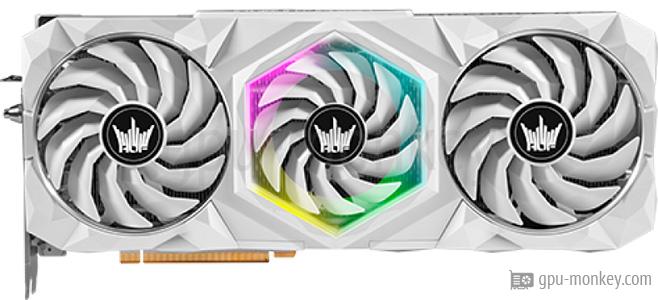

KFA2 GeForce RTX 3090 Ti HOF
Benchmark and Specs

Last updated:

GPU

Based on: NVIDIA GeForce RTX 3090 Ti
GPU Chip: GA102-350-A1
Execution units: 84
Shader: 10752
Render Output Units: 112
Texture Units: 336
Raytracing Cores: 84

Memory

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21 Gbps
Memory Bandwith: 1008 GB/s
Memory Interface: 384 bit

Clock Speeds

Base Clock: 1.560 GHzDeviation vs GPU group-7 %
Boost Clock: 1.935 GHzDeviation vs GPU group+ 4 %
Avg (Game) Clock: 1.920 GHz
Overclocking: Yes

Thermal Design

TDP: 450 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 6 x 8-Pin

Cooler & Fans

Fan-Type: Axial
Fan 1: 2 x 102 mm
Fan 2: 1 x 92 mm
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

Length: 352 mm
Height: 160 mm
Width: 68 mm
Width (Slots): 4 PCIe-Slots
Weight: --

Additional data

GPU Interface: PCIe 4.0 x 16
Release date: Q2/2022
Release price: --
Structure size: 8 nm
Part-no: 39IXM5MD5ZEK
Documents: data sheet

Etchash
ETC / EtchashETC - 130 Mh/s
CORE 1200 MEM 2750


Ethash
ETH / EthashETH - 130 Mh/s
CORE 1200 MEM 2750


Settings for the Linux mining operating system Hive OS for the gpu KFA2 GeForce RTX 3090 Ti HOF. The settings are based on our experience and work for most models of this graphics card. The results can vary depending on the chip quality, driver and software version. In these cases, the settings may have to be adapted to your own hardware.

Benchmark results

3DMark Benchmark - Time Spy Graphics score

3DMark is a benchmark that mainly measures the graphics card. As in almost every graphics card benchmark, however, the system's processor has an effect on the result. We therefore use a fast processor in order not to limit the graphics card during the test.
View all 3DMark Benchmark benchmark results



3DMark Benchmark - Fire Strike Extreme Graphics score

3DMark is a benchmark that mainly measures the graphics card. As in almost every graphics card benchmark, however, the system's processor has an effect on the result. We therefore use a fast processor in order not to limit the graphics card during the test.
View all 3DMark Benchmark benchmark results



Cyberpunk 2077 - 3840x2160 (2160p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
71 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
70 fps (avg)
NVIDIA GeForce RTX 3080 Ti NVIDIA GeForce RTX 3080 Ti
12 GB GDDR6X
66 fps (avg)
AMD Radeon RX 6900 XT AMD Radeon RX 6900 XT
16 GB GDDR6
66 fps (avg)
View all Cyberpunk 2077 benchmark results



Cyberpunk 2077 - 2560x1440 (1440p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
87 fps (avg)
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
87 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
79 fps (avg)
NVIDIA GeForce RTX 3080 Ti NVIDIA GeForce RTX 3080 Ti
12 GB GDDR6X
77 fps (avg)
AMD Radeon RX 6900 XT AMD Radeon RX 6900 XT
16 GB GDDR6
77 fps (avg)
View all Cyberpunk 2077 benchmark results



Cyberpunk 2077 - 1920x1080 (1080p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
125 fps (avg)
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
125 fps (avg)
AMD Radeon RX 6900 XT AMD Radeon RX 6900 XT
16 GB GDDR6
116 fps (avg)
AMD Radeon RX 6950 XT AMD Radeon RX 6950 XT
16 GB GDDR6
115 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
114 fps (avg)
View all Cyberpunk 2077 benchmark results



Battlefield 5 - 3840x2160 (2160p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
129 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
128 fps (avg)
AMD Radeon RX 6950 XT AMD Radeon RX 6950 XT
16 GB GDDR6
122 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
116 fps (avg)
View all Battlefield 5 benchmark results



Battlefield 5 - 2560x1440 (1440p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
201 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
201 fps (avg)
AMD Radeon RX 6900 XT AMD Radeon RX 6900 XT
16 GB GDDR6
200 fps (avg)
AMD Radeon RX 6950 XT AMD Radeon RX 6950 XT
16 GB GDDR6
200 fps (avg)
View all Battlefield 5 benchmark results



Shadow of the Tomb Raider - 3840x2160 (2160p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
105 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
104 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
93 fps (avg)
NVIDIA GeForce RTX 3080 Ti NVIDIA GeForce RTX 3080 Ti
12 GB GDDR6X
91 fps (avg)
View all Shadow of the Tomb Raider benchmark results



Shadow of the Tomb Raider - 2560x1440 (1440p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
166 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
165 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
153 fps (avg)
NVIDIA GeForce RTX 3080 Ti NVIDIA GeForce RTX 3080 Ti
12 GB GDDR6X
152 fps (avg)
View all Shadow of the Tomb Raider benchmark results



GTA 5 Benchmark (Grand Theft Auto V) - 3840x2160 (2160p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
140 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
140 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
129 fps (avg)
AMD Radeon RX 6950 XT AMD Radeon RX 6950 XT
16 GB GDDR6
122 fps (avg)
View all GTA 5 Benchmark (Grand Theft Auto V) benchmark results



GTA 5 Benchmark (Grand Theft Auto V) - 2560x1440 (1440p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
190 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
189 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
183 fps (avg)
AMD Radeon RX 6950 XT AMD Radeon RX 6950 XT
16 GB GDDR6
152 fps (avg)
View all GTA 5 Benchmark (Grand Theft Auto V) benchmark results



GTA 5 Benchmark (Grand Theft Auto V) - 1920x1080 (1080p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.
KFA2 GeForce RTX 3090 Ti HOF KFA2 GeForce RTX 3090 Ti HOF
24 GB GDDR6X
231 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
231 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
24 GB GDDR6X
211 fps (avg)
AMD Radeon RX 6900 XT AMD Radeon RX 6900 XT
16 GB GDDR6
188 fps (avg)
View all GTA 5 Benchmark (Grand Theft Auto V) benchmark results



FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.

View all FP32 Performance (Single-precision TFLOPS) benchmark results



Crypto-Mining Ethereum Hashrate (MH/s) - Ethash Hashrate

Ethash is the Proof-of-Work (PoW) algorithm used for the crypto currency Ethereum. Ethash is based on the Dagger-Hashimoto algorithm, but has been significantly changed in some places. For example, the memory requirement (GPU memory) was significantly increased in order to make it more difficult or even to prevent the calculation of the algorithm on so-called ASICs (Application Specific Integrated Circuits). Our benchmark results are based on a slight overclocking of the graphics card and the GPU memory. The hashrates were achieved under Hive OS with moderate overclocking settings.

If you are looking for a reliable cryptocurrency exchange that regularly includes new cryptocurrencies, we recommend Kraken.com.
View all Crypto-Mining Ethereum Hashrate (MH/s) benchmark results



Crypto-Mining Ergo Hashrate (MH/s) - Autolykos 2 Hashrate

The crypto currency Ergo is based on the Autolykos algorithm, which was updated in version 2 (Autolykos 2) in early 2021. The Autolykos 2 algorithm is based on the PoW concept and can be efficiently calculated by a graphics card. When calculating Ergo Coins, ASICs have no efficiency advantage over modern graphics cards, which should make Ergo attractive for as many miners as possible. The Ergo protocol is based on the blockchain and has been optimized for a very long shelf life. The hashrates were achieved under Hive OS with moderate overclocking settings.

If you are looking for a reliable cryptocurrency exchange that regularly includes new cryptocurrencies, we recommend Kraken.com.
View all Crypto-Mining Ergo Hashrate (MH/s) benchmark results



Crypto-Mining Ravencoin Hashrate (MH/s) - KawPow Hashrate

The KawPoW algorithm has been used with the crypto currency Ravencoin since May 2020. Previously, Ravencoin used ProgPoW (X16R and X16Rv2). KawPoW is a Proof-of-Work (PoW) algorithm and is calculated the fastest with a modern graphics card. KawPoW is based on a changing algorithm (X15 and SHA51) and can therefore not be calculated via ASIC. The developers want to protect Ravencoin from large mining farms that often use ASICs. In addition to Ravencoin, other cryptocurrencies are based on KawPoW, including Hilux and Gravium. The hashrates were achieved under Hive OS with moderate overclocking settings.

If you are looking for a reliable cryptocurrency exchange that regularly includes new cryptocurrencies, we recommend Kraken.com.
View all Crypto-Mining Ravencoin Hashrate (MH/s) benchmark results
