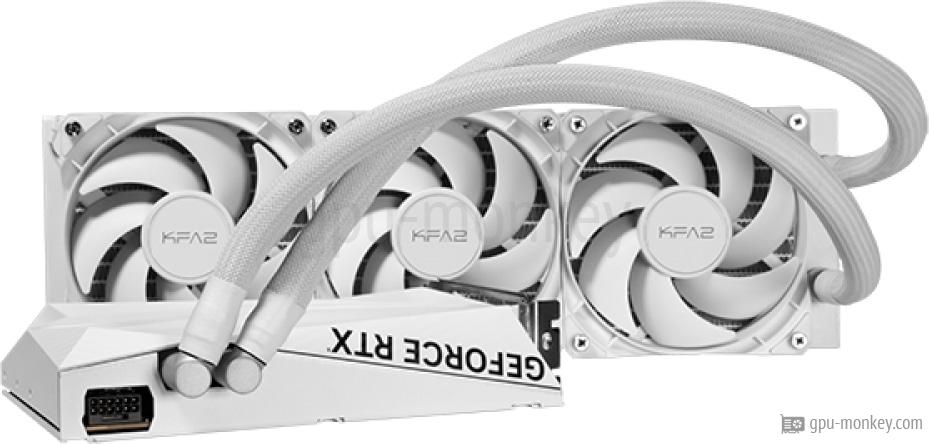

KFA2 GeForce RTX 4090 Hydro White
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the KFA2 GeForce RTX 4090 Hydro White. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the KFA2 GeForce RTX 4090 Hydro White is 2.580 GHz, so the graphics card achieves an FP32 computing power of 84.55 TFLOPS.
GPUThe KFA2 GeForce RTX 4090 Hydro White is equipped with 128 execution and 16384 shader units. With single precision, a theoretical FP32 computing power of 84.55 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 4090 |
| GPU Chip: | AD102-300 / AD102-301 (Ada Lovelace) |
| Streaming Multiprocessors: | 128 |
| Shader: | 16384 |
| Render Output Units: | 192 |
| Texture Units: | 512 |
| Raytracing Cores: | 128 |
MemoryThe KFA2 GeForce RTX 4090 Hydro White has a 384 bit wide memory interface, with which a memory bandwidth of 1008 GB/s is achieved. In total, 24 GB GDDR6X graphics memory is available for the graphics card. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.313 GHz |
| Memory Speed: | 21.0 Gbps |
| Memory bandwidth: | 1008 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the KFA2 GeForce RTX 4090 Hydro White with 2.235 GHz (base clock) or with 2.580 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 2.235 GHz |
| Boost Clock: | 2.580 GHz + 2 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe KFA2 GeForce RTX 4090 Hydro White has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 90 °C. |
|
| TDP: | 450 W (Reference) |
| TDP (up): | -- |
| Tjunction max: | 90 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe KFA2 GeForce RTX 4090 Hydro White is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 120 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the KFA2 GeForce RTX 4090 Hydro White, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe KFA2 GeForce RTX 4090 Hydro White supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the KFA2 GeForce RTX 4090 Hydro White in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe dimensions of the KFA2 GeForce RTX 4090 Hydro White are 216 mm in length, 150 mm in height and 42 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 216 mm |
| Height: | 150 mm |
| Width: | 42 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe KFA2 GeForce RTX 4090 Hydro White is manufactured in a structure width of 4 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q2/2023. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2023 |
| Launch Price: | 1,599 $ (Reference) |
| Structure size: | 4 nm |
| Part-no: | 49NXM5MD7CSK |
| Documents: | data sheet |
2.235 GHz, 24 GB (-- TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Port Royal (Raytracing)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
KFA2 GeForce RTX 4090 Hydro White
24 GB GDDR6X |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,842 entries
4,842 entries
Cyberpunk 2077
2,676 entries
2,676 entries
The Last of Us Part 1
1,313 entries
1,313 entries
GTA 5 Benchmark
4,318 entries
4,318 entries
Shadow of the Tomb Raider
4,871 entries
4,871 entries
Battlefield 5
3,963 entries
3,963 entries
Geekbench 5
3,762 entries
3,762 entries
Crypto-Mining Ethereum Hashrate
3,478 entries
3,478 entries
Crypto-Mining Ergo Hashrate
3,704 entries
3,704 entries
Crypto-Mining Ravencoin Hashrate
3,631 entries
3,631 entries
Crypto-Mining Vertcoin Hashrate
2,452 entries
2,452 entries
FP32 Performance
5,171 entries
5,171 entries
