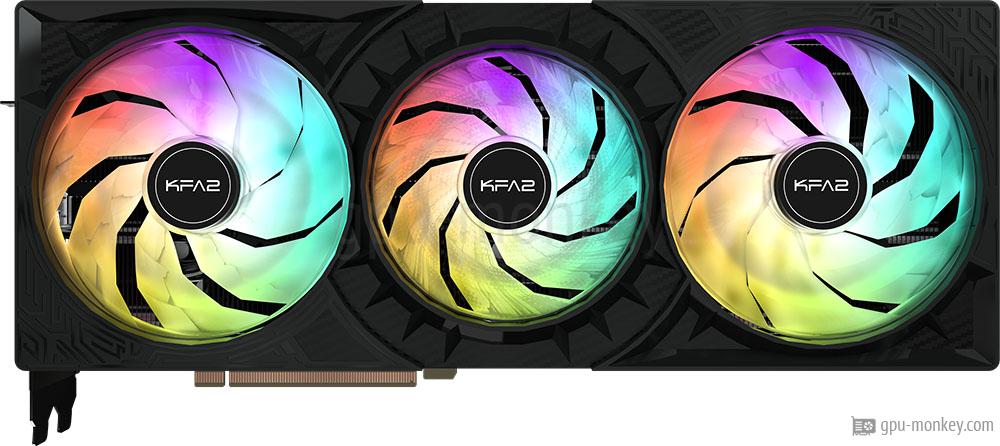

The KFA2 GeForce RTX 5090 1-Click OC has 170 execution units with 21760 shaders. This gives the graphics card a theoretical FP32 computing power of 105.45 TFLOPS.
- GPU Chip
- GB202-300-A1 (Blackwell)
- Streaming Multiprocessors
- 170
- Shader
- 21760
- Render Output Units
- 176
- Texture Units
- 680
- Raytracing Cores
- 170
The KFA2 GeForce RTX 5090 1-Click OC is equipped with 32 GB graphics memory of the type GDDR7. The memory clock of the graphics card is 1.750 GHz and the speed is 28 Gbps.
- Memory Size
- 32 GB
- Memory Type
- GDDR7
- Memory Clock
- 1.750 GHz
- Memory Speed
- 28.0 Gbps
- Memory bandwidth
- 1,792 GB/s
- Memory Interface
- 512 bit
The base frequency of this graphics card is 2.017 GHz and the manufacturer specifies the maximum turbo clock as 2.422 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 2.017 GHz
- Boost Clock
- 2.422 GHz+1 %
- Overclocking
- Yes
The KFA2 GeForce RTX 5090 1-Click OC is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 575 W.
- TDP
- 575 W (Reference)
- Tjunction max
- 90 °C
- PCIe-Power
- 1 x 16-Pin
Graphics processor and graphics memory of the KFA2 GeForce RTX 5090 1-Click OC are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 2 x 102 mm
- Fan 2
- 1 x 92 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 monitors can be operated with the KFA2 GeForce RTX 5090 1-Click OC.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1b
- DisplayPort
- 3x DP 2.1b
With the KFA2 GeForce RTX 5090 1-Click OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- Addressable LED
This area lists the video codecs that the KFA2 GeForce RTX 5090 1-Click OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode / Encode
- VP9
- Decode / Encode
- AV1
- Decode / Encode
The KFA2 GeForce RTX 5090 1-Click OC needs the space of 3 PCIe-Slots in a case. It is 337 mm long, 151 mm high and 60 mm wide.
- Length
- 337 mm
- Height
- 151 mm
- Width
- 60 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The KFA2 GeForce RTX 5090 1-Click OC was released in Q1/2025 at a price of 2,329 $. The graphics card manufactured in 5 nm is connected to the system via PCIe 5 x 16 lanes.
- GPU Interface
- PCIe 5 x 16
- Release date
- Q1/2025
- Launch Price
- 2,329 $ (Reference)
- Structure size
- 5 nm
- Part-no
- 59NBN1MDBWOK
