Manli White Gallardo GeForce RTX 5090 OC
Benchmark and Specs
Last updated:
Benchmark and Specs

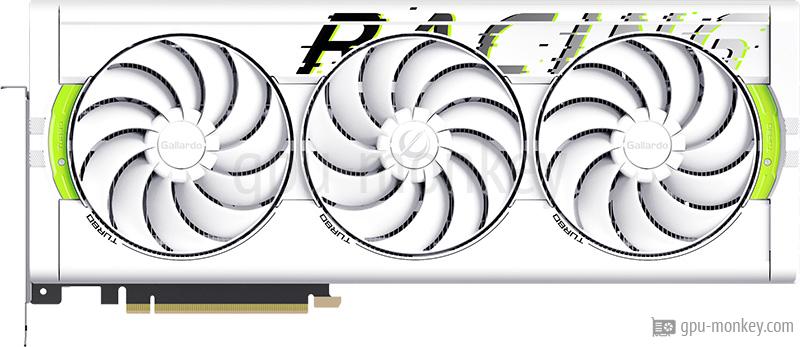

All technical data and various benchmarks of the Manli White Gallardo GeForce RTX 5090 OC are listed on this page. The graphics card is based on the GB202-300-A1 (Blackwell) graphics chip, which is manufactured with a structure width of 5 nm. The Manli White Gallardo GeForce RTX 5090 OC can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe Manli White Gallardo GeForce RTX 5090 OC has 170 execution units with 21760 shaders. This gives the graphics card a theoretical FP32 computing power of 108.07 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 5090 |
| GPU Chip: | GB202-300-A1 (Blackwell) |
| Streaming Multiprocessors: | 170 |
| Shader: | 21760 |
| Render Output Units: | 176 |
| Texture Units: | 680 |
| Raytracing Cores: | 170 |
MemoryThe Manli White Gallardo GeForce RTX 5090 OC is equipped with 32 GB graphics memory of the type GDDR7. The memory clock of the graphics card is 1.750 GHz and the speed is 28 Gbps. |
|
| Memory Size: | 32 GB |
| Memory Type: | GDDR7 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 28.0 Gbps |
| Memory bandwidth: | 1792 GB/s |
| Memory Interface: | 512 bit |
Clock SpeedsThe base frequency of this graphics card is 2.017 GHz and the manufacturer specifies the maximum turbo clock as 2.482 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 2.017 GHz |
| Boost Clock: | 2.482 GHz + 3 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe Manli White Gallardo GeForce RTX 5090 OC is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is --. |
|
| TDP: | 575 W (Reference) |
| TDP (up): | -- |
| Tjunction max: | 90 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansGraphics processor and graphics memory of the Manli White Gallardo GeForce RTX 5090 OC are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the Manli White Gallardo GeForce RTX 5090 OC. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1b |
| DP Ports: | 3x DP v2.1b |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the Manli White Gallardo GeForce RTX 5090 OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThis area lists the video codecs that the Manli White Gallardo GeForce RTX 5090 OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode / Encode |
DimensionsThe Manli White Gallardo GeForce RTX 5090 OC needs the space of 4 PCIe-Slots in a case. It is 359 mm long, 145 mm high and 69 mm wide. |
|
| Length: | 359 mm |
| Height: | 145 mm |
| Width: | 69 mm |
| Width (Slots): | 4 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe Manli White Gallardo GeForce RTX 5090 OC was released in Q3/2025 at a price of 2,329 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 5 x 16 lanes. |
|
| GPU Interface: | PCIe 5 x 16 |
| Release date: | Q3/2025 |
| Launch Price: | 2,329 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | M-N509GO/D732G-M3663 |
| Documents: | data sheet |
2.017 GHz, 32 GB (-- TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
|
NVIDIA GeForce RTX 5090
Average of gpu group |
||
Steel Nomad Light Graphics score
|
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5090
Average of gpu group |
||
Steel Nomad Graphics score
|
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5090
Average of gpu group |
||
Port Royal (Raytracing)
|
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5090
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5090
Average of gpu group |
||
Solar Bay (Raytracing)
|
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5090
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Manli White Gallardo GeForce RTX 5090 OC
32 GB GDDR7 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
