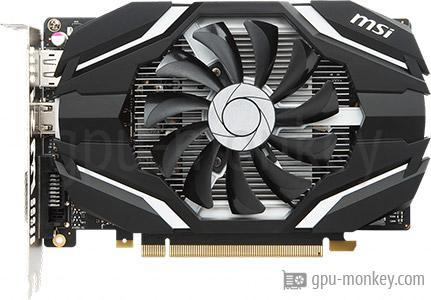

MSI GeForce GTX 1050 2G OCV1
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the MSI GeForce GTX 1050 2G OCV1 are listed on this page. The graphics card is based on the GP107-300-A1 (Pascal) graphics chip, which is manufactured with a structure width of 14 nm. The MSI GeForce GTX 1050 2G OCV1 can operate up to 3 screens with a maximum resolution of up to 7680x4320 become.
GPUThe MSI GeForce GTX 1050 2G OCV1 has 5 execution units with 640 shaders. This gives the graphics card a theoretical FP32 computing power of 1.94 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1050 2GB |
| GPU Chip: | GP107-300-A1 (Pascal) |
| Streaming Multiprocessors: | 5 |
| Shader: | 640 |
| Render Output Units: | 32 |
| Texture Units: | 40 |
| Raytracing Cores: | 0 |
MemoryThe MSI GeForce GTX 1050 2G OCV1 is equipped with 2 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 1.752 GHz and the speed is 7 Gbps. |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.752 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base frequency of this graphics card is 1.404 GHz and the manufacturer specifies the maximum turbo clock as 1.518 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.404 GHz + 4 % |
| Boost Clock: | 1.518 GHz+ 4 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce GTX 1050 2G OCV1 is powered by connectors. The TDP (Thermal Design Power) of the graphics card is 75 W. |
|
| TDP: | 75 W |
| TDP (up): | -- |
| Tjunction max: | 97 °C |
| PCIe-Power: | |
Cooler & FansGraphics processor and graphics memory of the MSI GeForce GTX 1050 2G OCV1 are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 monitors can be operated with the MSI GeForce GTX 1050 2G OCV1. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 1x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the MSI GeForce GTX 1050 2G OCV1 it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the MSI GeForce GTX 1050 2G OCV1 can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | No |
| VP9: | Decode |
| AV1: | No |
DimensionsThe MSI GeForce GTX 1050 2G OCV1 needs the space of 2 PCIe-Slots in a case. It is 177 mm long, 116 mm high and 36 mm wide. |
|
| Length: | 177 mm |
| Height: | 116 mm |
| Width: | 36 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 321 g |
Additional dataThe MSI GeForce GTX 1050 2G OCV1 was released in Q3/2016 at a price of 109 $ (Reference). The graphics card manufactured in 14 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2016 |
| Launch Price: | 109 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.404 GHz, 2 GB (75 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce GTX 1050 2G OCV1
2 GB GDDR5 |
||
