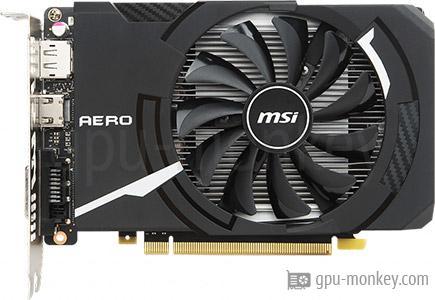

MSI GeForce GTX 1050 AERO ITX 2G V1
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the MSI GeForce GTX 1050 AERO ITX 2G V1. The graphics card is based on the NVIDIA GeForce GTX 1050 2GB (Pascal) and has 2 GB GDDR5 graphics memory with a memory bandwidth of 112 GB/s. The MSI GeForce GTX 1050 AERO ITX 2G V1 has 5 execution units with 640 shaders.
GPUThe MSI GeForce GTX 1050 AERO ITX 2G V1 has 640 shaders and 5 execution units. The graphics card thus achieves a theoretical FP32 computing power of 1.86 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1050 2GB |
| GPU Chip: | GP107-300-A1 (Pascal) |
| Streaming Multiprocessors: | 5 |
| Shader: | 640 |
| Render Output Units: | 32 |
| Texture Units: | 40 |
| Raytracing Cores: | 0 |
MemoryThe MSI GeForce GTX 1050 AERO ITX 2G V1 can use 2 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 112 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.752 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the MSI GeForce GTX 1050 AERO ITX 2G V1 is 1.354 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.354 GHz |
| Boost Clock: | 1.455 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI GeForce GTX 1050 AERO ITX 2G V1 is 75 W. The graphics card is supplied with energy via the connector. |
|
| TDP: | 75 W |
| TDP (up): | -- |
| Tjunction max: | 97 °C |
| PCIe-Power: | |
Cooler & FansThe MSI GeForce GTX 1050 AERO ITX 2G V1 has a total of 1 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 screens can be connected to the MSI GeForce GTX 1050 AERO ITX 2G V1. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 1x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe MSI GeForce GTX 1050 AERO ITX 2G V1 has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the MSI GeForce GTX 1050 AERO ITX 2G V1 reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | No |
| VP9: | Decode |
| AV1: | No |
DimensionsThe MSI GeForce GTX 1050 AERO ITX 2G V1 is 170 mm long and 111 mm high. With a width of 39 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 170 mm |
| Height: | 111 mm |
| Width: | 39 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 317 g |
Additional dataThe MSI GeForce GTX 1050 AERO ITX 2G V1 made in 14 nm was published in Q3/2016 for 109 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2016 |
| Launch Price: | 109 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.354 GHz, 2 GB (75 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1050 2GB
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce GTX 1050 AERO ITX 2G V1
2 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
