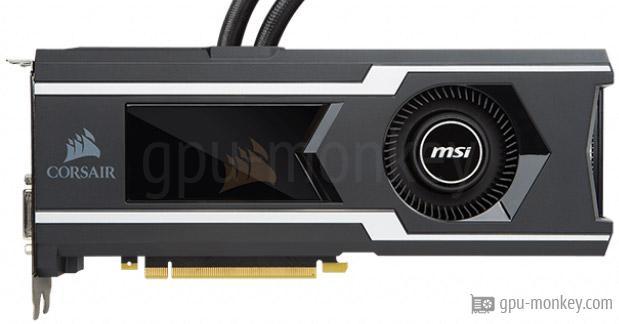

MSI GeForce GTX 1080 Ti SEA HAWK
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the MSI GeForce GTX 1080 Ti SEA HAWK. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the MSI GeForce GTX 1080 Ti SEA HAWK is 1.620 GHz, so the graphics card achieves an FP32 computing power of 11.61 TFLOPS.
GPUThe MSI GeForce GTX 1080 Ti SEA HAWK is equipped with 28 execution and 3584 shader units. With single precision, a theoretical FP32 computing power of 11.61 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 1080 Ti |
| GPU Chip: | GP102-350-K1-A1 (Pascal) |
| Streaming Multiprocessors: | 28 |
| Shader: | 3584 |
| Render Output Units: | 88 |
| Texture Units: | 224 |
| Raytracing Cores: | 0 |
MemoryThe MSI GeForce GTX 1080 Ti SEA HAWK has a 352 bit wide memory interface, with which a memory bandwidth of 484 GB/s is achieved. In total, 11 GB GDDR5X graphics memory is available for the graphics card. |
|
| Memory Size: | 11 GB |
| Memory Type: | GDDR5X |
| Memory Clock: | 1.376 GHz |
| Memory Speed: | 11.0 Gbps |
| Memory bandwidth: | 484 GB/s |
| Memory Interface: | 352 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the MSI GeForce GTX 1080 Ti SEA HAWK with 1.480 GHz (base clock) or with 1.620 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.480 GHz |
| Boost Clock: | 1.620 GHz + 2 % |
| Avg (Game) Clock: | 1.607 GHz |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce GTX 1080 Ti SEA HAWK has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 91 °C. |
|
| TDP: | 250 W |
| TDP (up): | -- |
| Tjunction max: | 91 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe MSI GeForce GTX 1080 Ti SEA HAWK is equipped with 2 Radial/Axial (Radiator) main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Radial/Axial (Radiator) |
| Fan 1: | 1 x 70 mm |
| Fan 2: | 1 x 120 mm |
| Cooler-Type: | AIO water cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 0 dB |
ConnectivityUp to 4 screens can be connected to the MSI GeForce GTX 1080 Ti SEA HAWK, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe MSI GeForce GTX 1080 Ti SEA HAWK supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the MSI GeForce GTX 1080 Ti SEA HAWK in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe dimensions of the MSI GeForce GTX 1080 Ti SEA HAWK are 269 mm in length, 111 mm in height and 35 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 269 mm |
| Height: | 111 mm |
| Width: | 35 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 1363 g |
Additional dataThe MSI GeForce GTX 1080 Ti SEA HAWK is manufactured in a structure width of 16 nm and has a PCIe 3.0 x 16 lanes interface. The graphics card was released in Q1/2017. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q1/2017 |
| Launch Price: | 699 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.480 GHz, 11 GB (250 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce GTX 1080 Ti SEA HAWK
11 GB GDDR5X |
||
