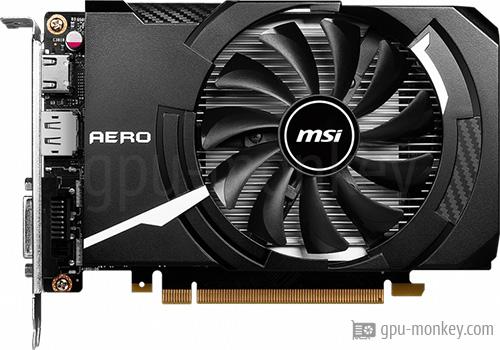

MSI GeForce GTX 1630 Aero ITX 4G
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the MSI GeForce GTX 1630 Aero ITX 4G. The graphics card is based on the NVIDIA GeForce GTX 1630 (Turing) and has 4 GB GDDR6 graphics memory with a memory bandwidth of 96 GB/s. The MSI GeForce GTX 1630 Aero ITX 4G has 8 execution units with 512 shaders.
GPUThe MSI GeForce GTX 1630 Aero ITX 4G has 512 shaders and 8 execution units. The graphics card thus achieves a theoretical FP32 computing power of 1.83 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1630 |
| GPU Chip: | TU117-150 (Turing) |
| Streaming Multiprocessors: | 8 |
| Shader: | 512 |
| Render Output Units: | 16 |
| Texture Units: | 32 |
| Raytracing Cores: | 0 |
MemoryThe MSI GeForce GTX 1630 Aero ITX 4G can use 4 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 96 GB/s on a 64 bit wide memory interface. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.500 GHz |
| Memory Speed: | 12.0 Gbps |
| Memory bandwidth: | 96 GB/s |
| Memory Interface: | 64 bit |
Clock SpeedsThe base clock frequency of the MSI GeForce GTX 1630 Aero ITX 4G is 1.740 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.740 GHz |
| Boost Clock: | 1.785 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI GeForce GTX 1630 Aero ITX 4G is 75 W. The graphics card is supplied with energy via the connector. |
|
| TDP: | 75 W |
| TDP (up): | -- |
| Tjunction max: | 90 °C |
| PCIe-Power: | |
Cooler & FansThe MSI GeForce GTX 1630 Aero ITX 4G has a total of 1 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 screens can be connected to the MSI GeForce GTX 1630 Aero ITX 4G. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 1x DP v1.4a |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe MSI GeForce GTX 1630 Aero ITX 4G has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the MSI GeForce GTX 1630 Aero ITX 4G reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe MSI GeForce GTX 1630 Aero ITX 4G is 170 mm long and 112 mm high. With a width of 39 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 170 mm |
| Height: | 112 mm |
| Width: | 39 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 388 g |
Additional dataThe MSI GeForce GTX 1630 Aero ITX 4G made in 12 nm was published in Q2/2022 for 169 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 8 |
| Release date: | Q2/2022 |
| Launch Price: | 169 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.740 GHz, 4 GB (75 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce GTX 1630 Aero ITX 4G
4 GB GDDR6 |
||
|
NVIDIA GeForce GTX 1630
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce GTX 1630 Aero ITX 4G
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1630
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce GTX 1630 Aero ITX 4G
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1630
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce GTX 1630 Aero ITX 4G
4 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,129 entries
5,129 entries
Shadow of the Tomb Raider
5,130 entries
5,130 entries
Geekbench 6
5,132 entries
5,132 entries
FP32 Performance
5,503 entries
5,503 entries
